Keychron K5 Max QMK Wireless Custom Mechanical Keyboard ISO Layout Collection

Keychron K5 Max

ISO Layout Collection

The ultra-slim K5 Max keyboard blends classic design with advanced connectivity, featuring a 100% layout and support for 2.4 GHz, Bluetooth, and wired connections. With QMK and Keychron Launcher web configurator, it enhances both work efficiency and gaming, offering a smooth, responsive encounter.

K5 Max ISO Layout Versions

These versions include the UK, German, Swiss, French, Spanish, Italian, and Nordic layouts, all with extra keycaps suitable for Mac and Windows devices.

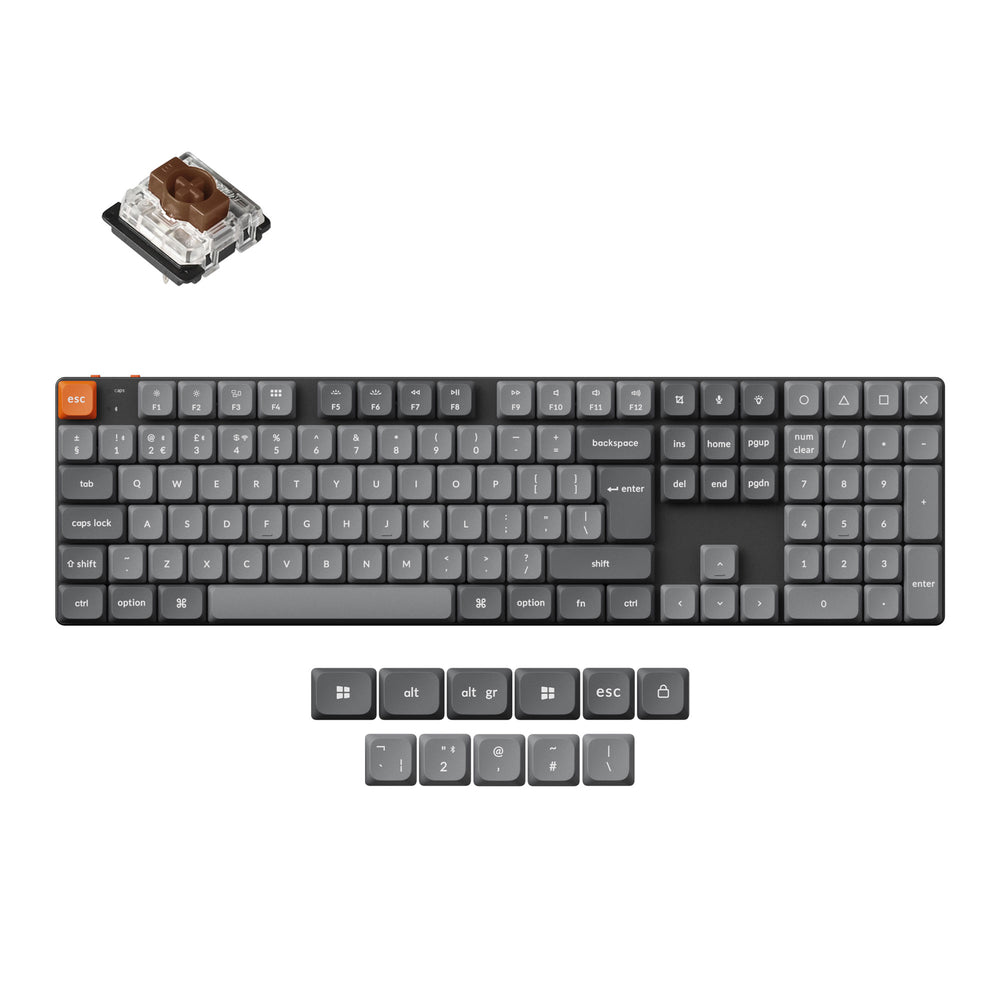

🇬🇧 UK-ISO Layout(PBT)

🇩🇪 German DE-ISO Layout(PBT)

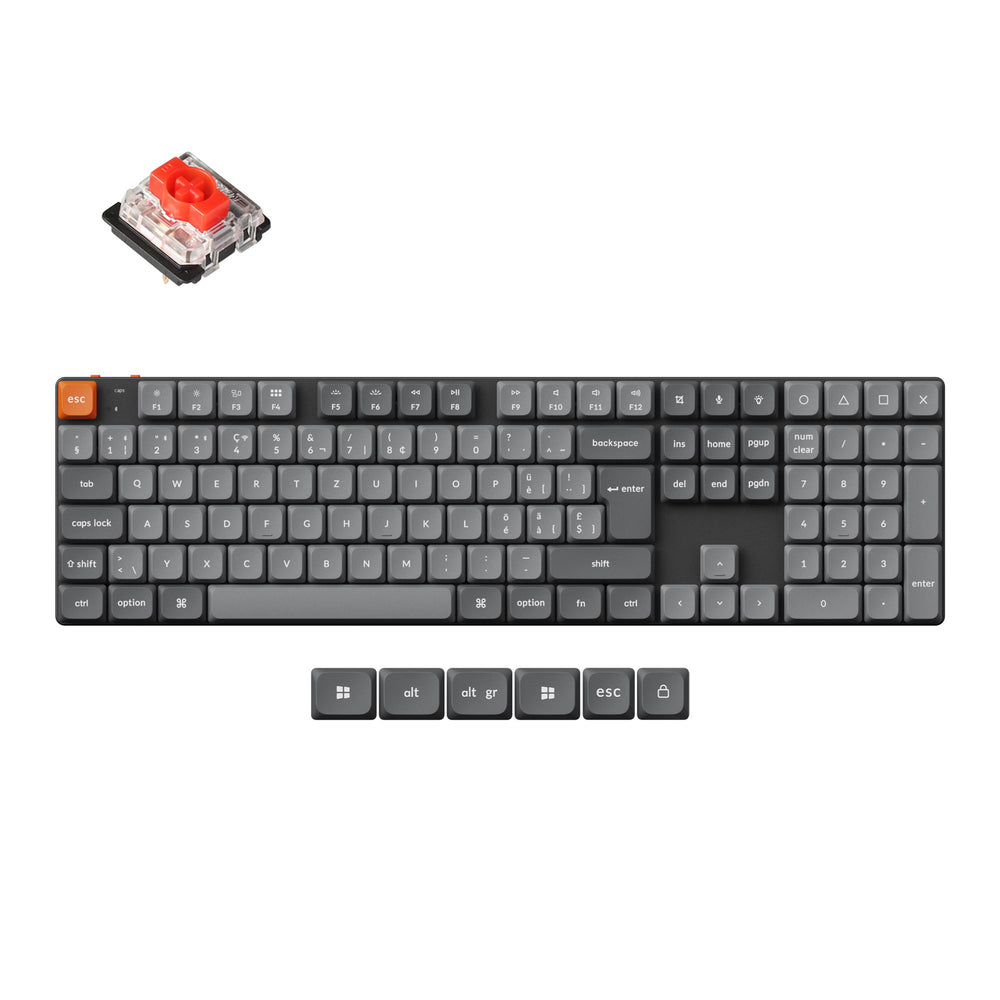

🇨🇭Swiss-ISO Layout(PBT)

🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout(PBT)

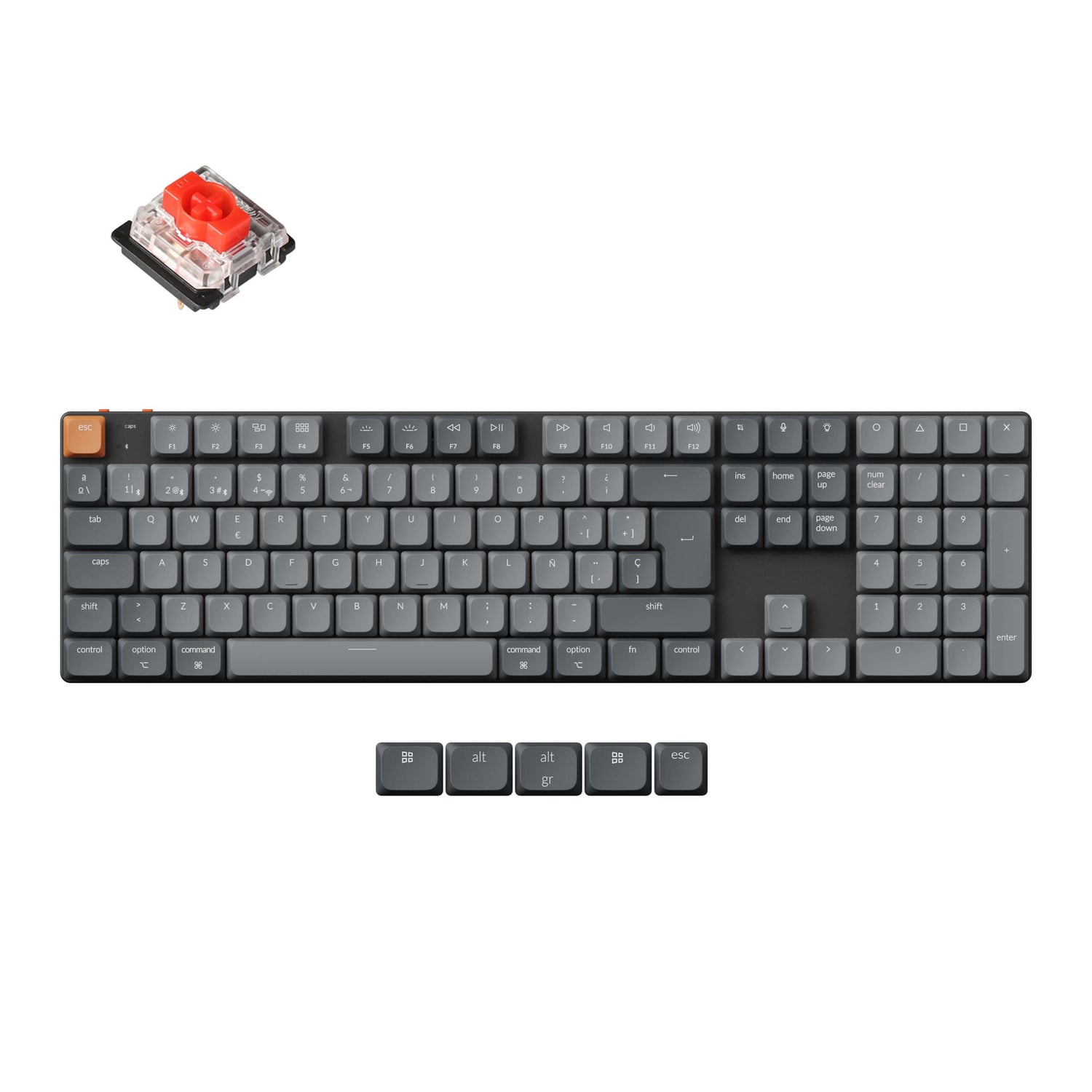

🇪🇸 Spanish-ISO Layout (ABS)

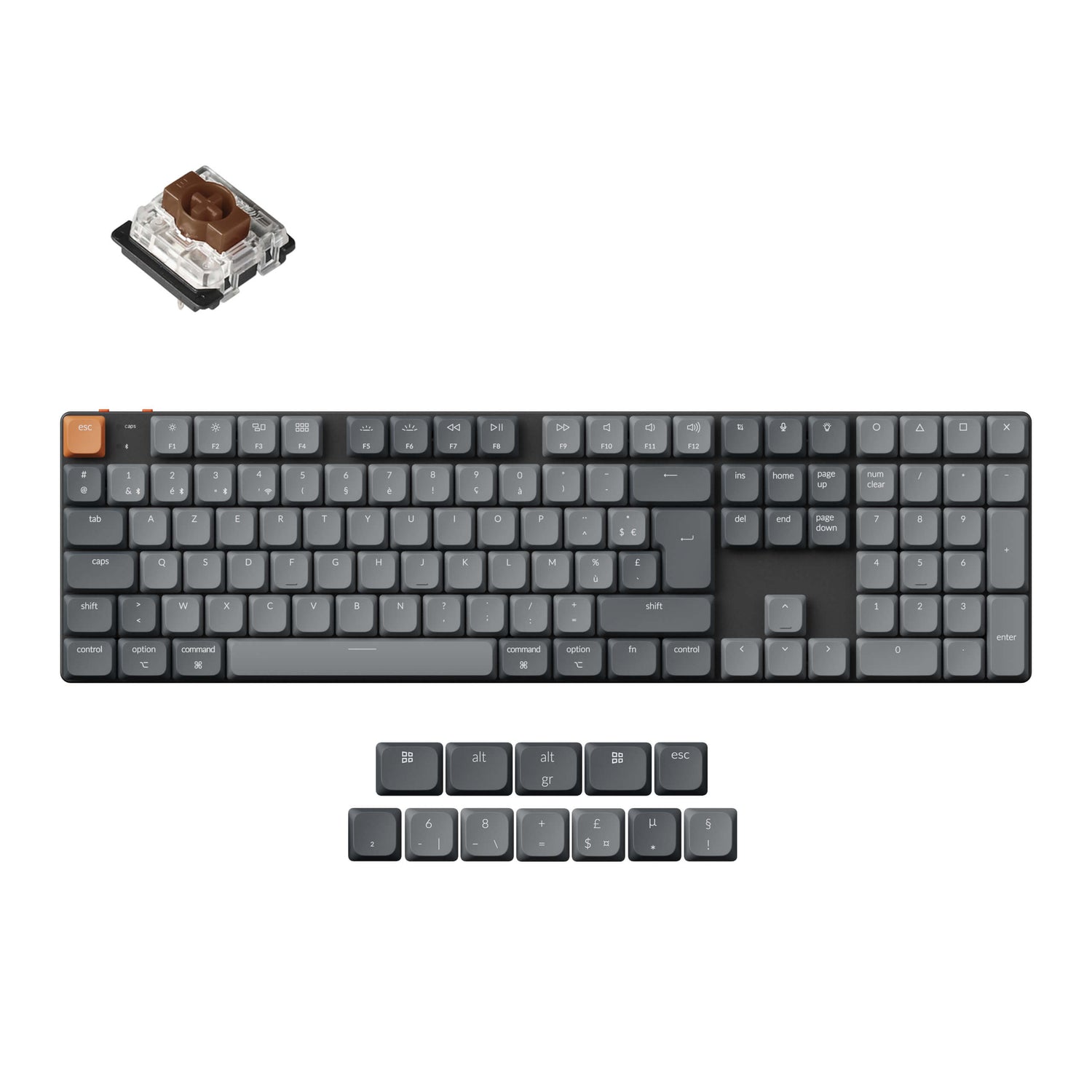

🇫🇷 French-ISO Layout (ABS)

Italian-ISO Layout (ABS)

2.4 GHz & Bluetooth Connection

Experience unparalleled performance with the K5 Max's 2.4 GHz wireless connection, offering a swift 1000 Hz polling rate. Its Bluetooth 5.1 capability allows seamless switching between computer, phone, and tablet for smooth multitasking across three devices.

Ultra-Slim

The innovative low-profile Gateron switch is 31% slimmer than conventional normal profile switches makes the aluminum body K5 Max one of the thinnest wireless mechanical keyboards in the world. While still delivering a distinguished tactile response.

An Epic Core Inside

A powerful ARM architecture MCU equipped with 256KB Flash will provide more flexibility for developers. The polling rate is 1000 Hz on 2.4GHz and wired modes right out of the box, which makes the latency hardly noticeable even in competitive games.

Interior Acoustic Foam

Elevate your typing with K5 Max featuring advanced IXPE acoustic foam for silent keystrokes and enhanced comfort, coupled with resilient latex foam for superior key switch support, responsiveness, and durability. Redefining the standard for a quiet, comfortable, and responsive typing experience.

Hot-Swappable (Optional)

You can customize your typing experience without soldering, pop them in and it's done.

We all have our unique typing preferences, that’s why we are offering hot-swappable option on the K5 Max, so you can easily hot-swap every low-profile Gateron mechanical switch in a few seconds to customize the typing experience without soldering.

*The K5 Max is currently compatible with Gateron / Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.

The Gateron low-profile MX 2.0 Mechanical switch is designed to enhance reliability. Gateron's reputable switches are your best choice for a precise, smooth, and reliable fingertip feel whether you prefer linear (red) or bumpy (brown).

Low-Profile Double-shot PBT Keycaps

Designed for premium type feeling, the K5 Max comes with our unique double-shot PBT keycaps that made of durable non-backlight shine through PBT material with excellent oil resistance for long-term use.

Redesigned Stabilizers

We’ve redesigned the stabilizers to make it stay on the level the same way as the switch while making sure it still delivers reliability and less wobble on the big keys like the space bar, left Shift, backspace, and Enter key.

RGB Backlights

Comes with more than 22 types of RGB backlight settings (as well as a static white backlight option), and 14 types of backlight settings on the White Backlight version. You can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.

Ergonomic Support

Three levels of adjustable typing angle aim to provide long-lasting ergonomic wrist support.

What's in the box?

Select the matching variant for your product.

SPECIFICATION

Number of Keys: 109 (100%)
Switches: Gateron low-profile mechanical
Switch Face: North-facing Number of Multimedia Keys: 12
Frame Material: ABS+Aluminum frame
Keycap Material: Low-profile double-shot PBT Layout: ISO
Polling Rate (2.4GHz and Wired Mode): 1000Hz
Polling Rate (BT Mode): 90Hz
N-Key Rollover (NKRO): Yes for both wireless and wired modes

*The K5 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.

CONNECTIVITY AND POWER

Backlit: 22 types of RGB backlight options plus endless possibilities
Battery: 2000 mAh rechargeable li-polymer battery
Wireless Working Time (Backlit off): Up to 110 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB): Up to 70 hours (Lowest brightness)
Connection: 2.4 GHz / Bluetooth / Type-C wired
Bluetooth version: 5.1 Bluetooth Device Name: Keychron K5 Max
Compatible System: macOS / Windows / Linux

PHYSICAL UNIT

Dimension: 424 mm x 119 mm (16.69 x 4.69")
Weight: 720g / 1.59 lbs
Height without keycap (front): 7.8 mm (0.3")
Height without keycap (rear): 14.7 mm (0.58")
Height incl. keycap (front): 18.2 mm (0.72")
Height incl. keycap (rear): 23.5 mm (0.92")
Typing Angle: 3.37º, 4.36º and 6.56º
MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Operating Environment: -10 to 50℃
