Name: Keychron Q10 (Alice Layout) QMK Custom Mechanical Keyboard ISO Layout Collection
Brand: Keychron
SKU: Q10-M3-DE
Price: 210.0 EUR
Availability: OutOfStock

1 15

Selling fast!
Grab yours while you can

Keychron Q10
ISO Layout Versions

Keychron Q10 is a 75% Alice layout all-metal mechanical keyboard. With its all-metal CNC machined body, a full-size layout, double-gasket design, QMK/VIA support, and a left knob, the Q10 meets all your practical needs and gives you a high-end typing experience.

Keychron Q10 75% Alice Layout Custom Mechanical Keyboard

Features of Keychron Q10 75% Alice Layout Custom Mechanical Keyboard

Customize Your Q10

Choose the keycaps, switches and more accessories for your Q10 ISO Layout Keyboard

Q10 ISO Layout Version

The Keychron Q10 QMK custom mechanical keyboard ISO layout collection comes with UK, German, Nordic, Swiss, French, and Spanish layouts. Each Q10 ISO layout keyboard is also equipped with extra keycaps that fully satisfy your needs.

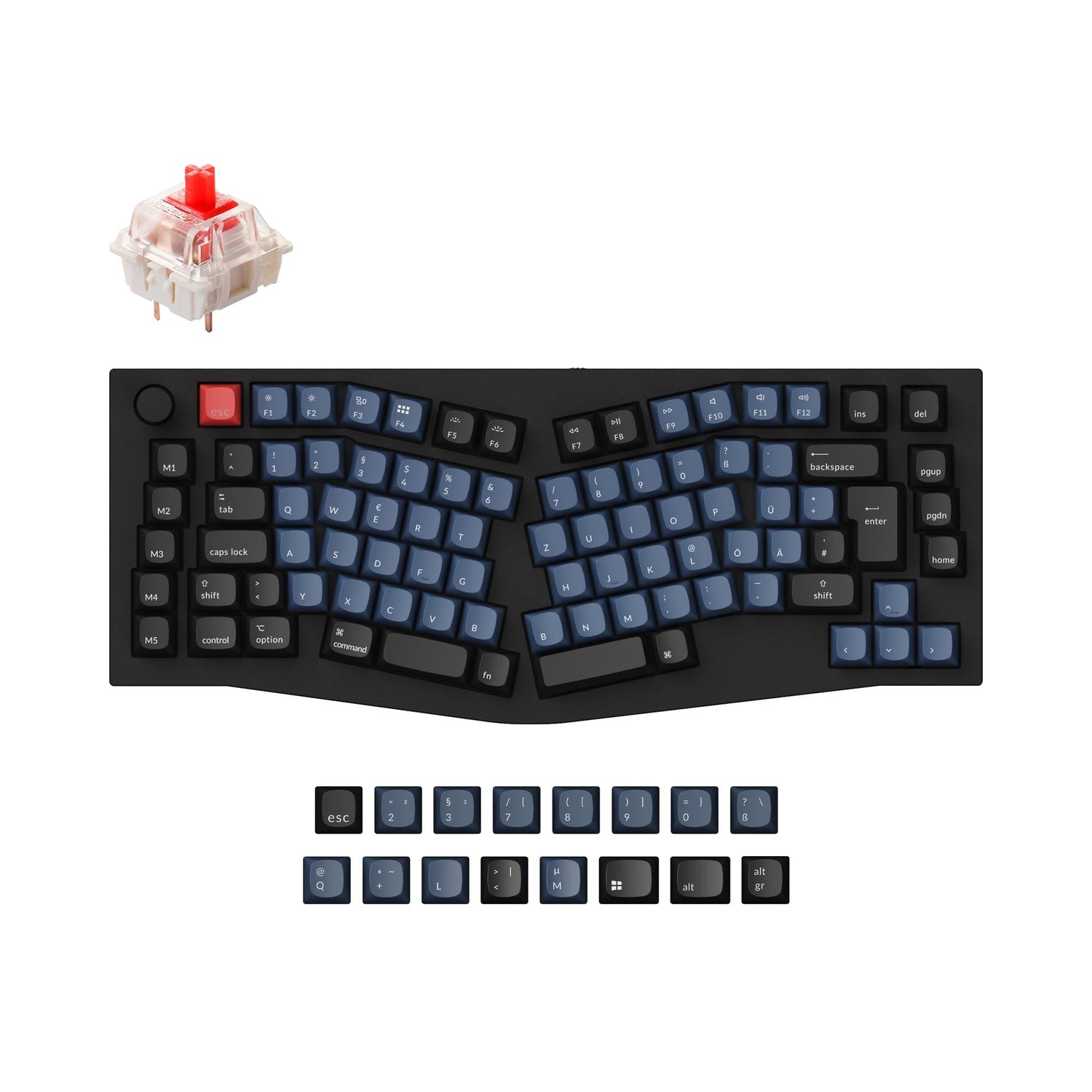

🇩🇪 DE-ISO Layout

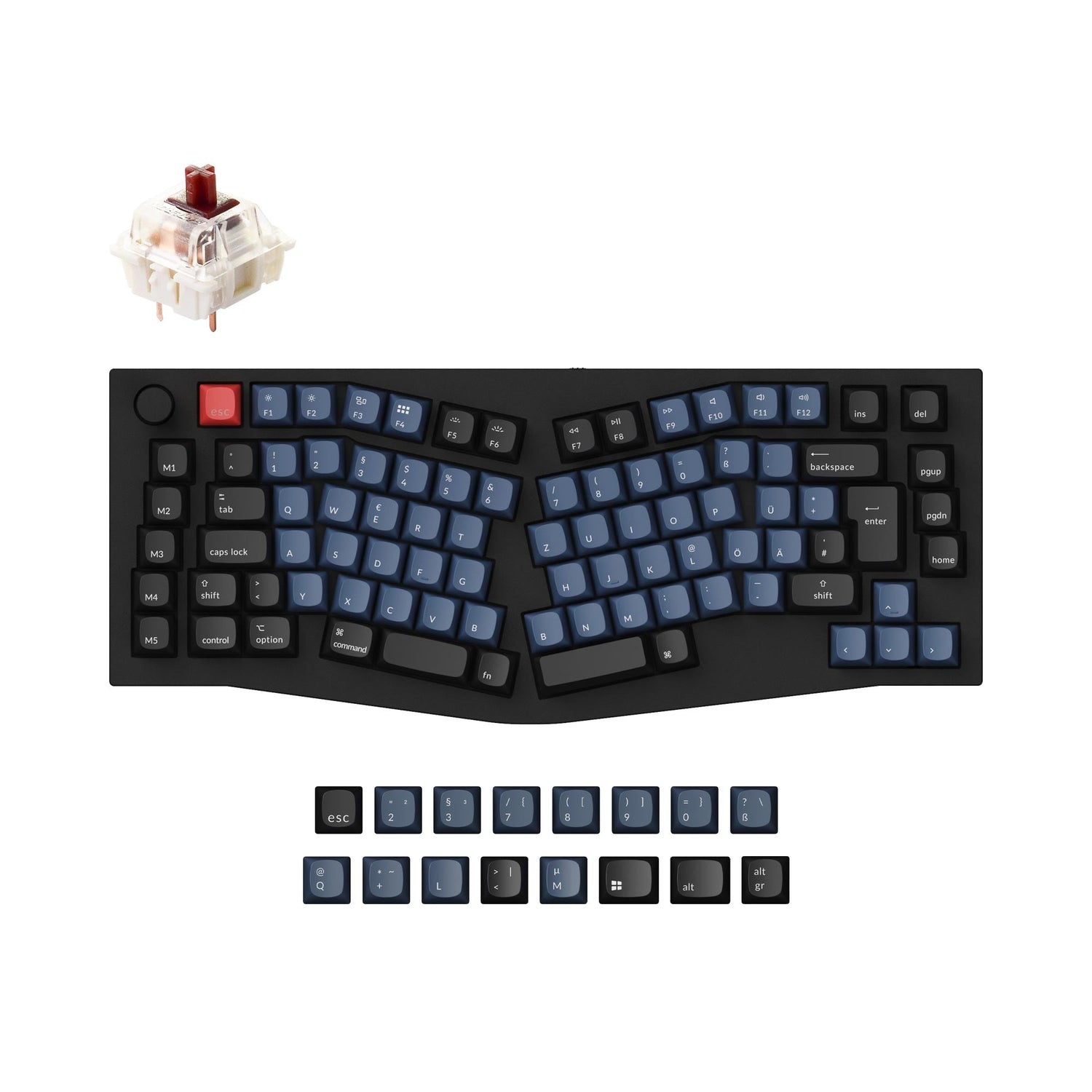

Keychron Q10 German ISO 75% Alice Layout Custom Mechanical Keyboard

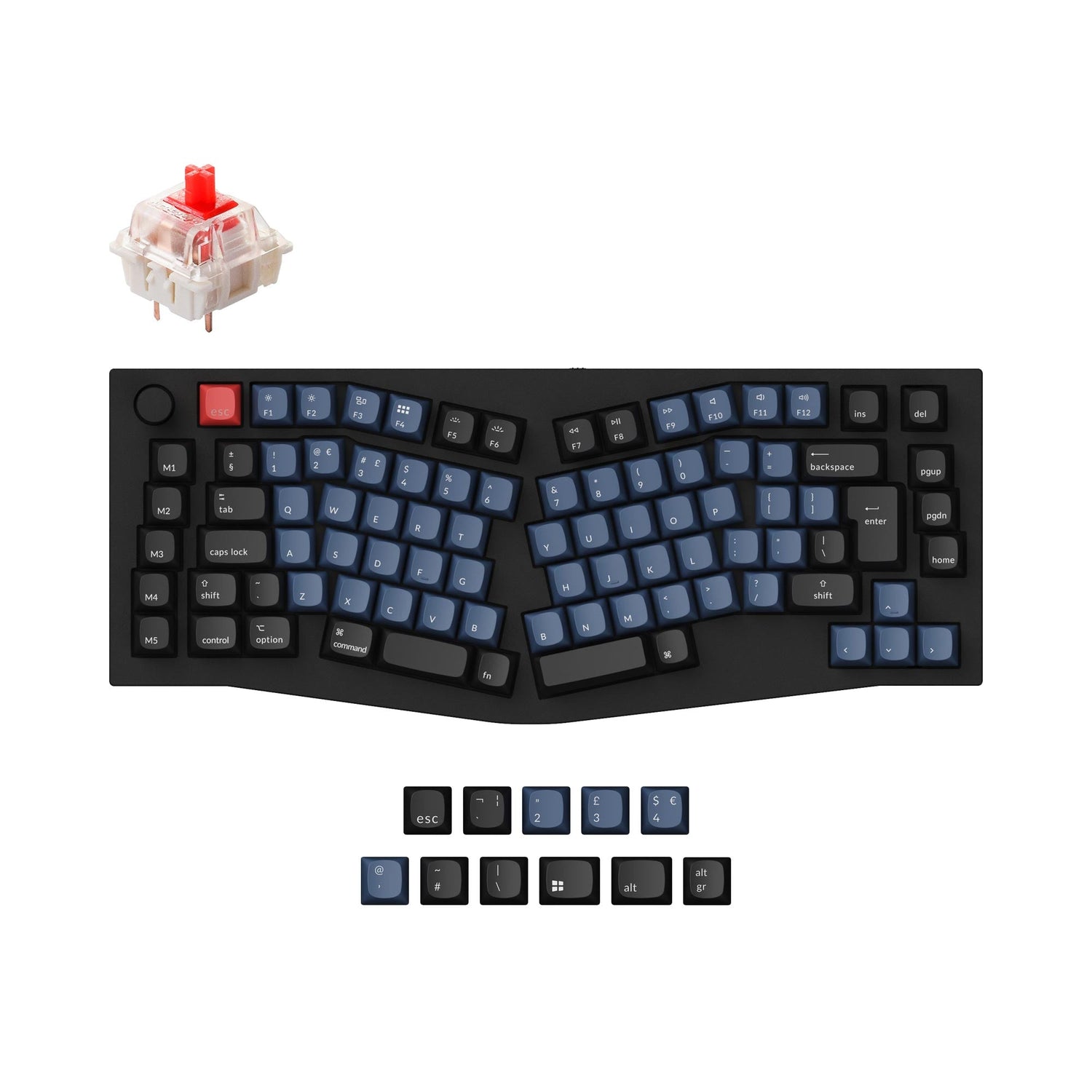

🇬🇧 UK-ISO Layout

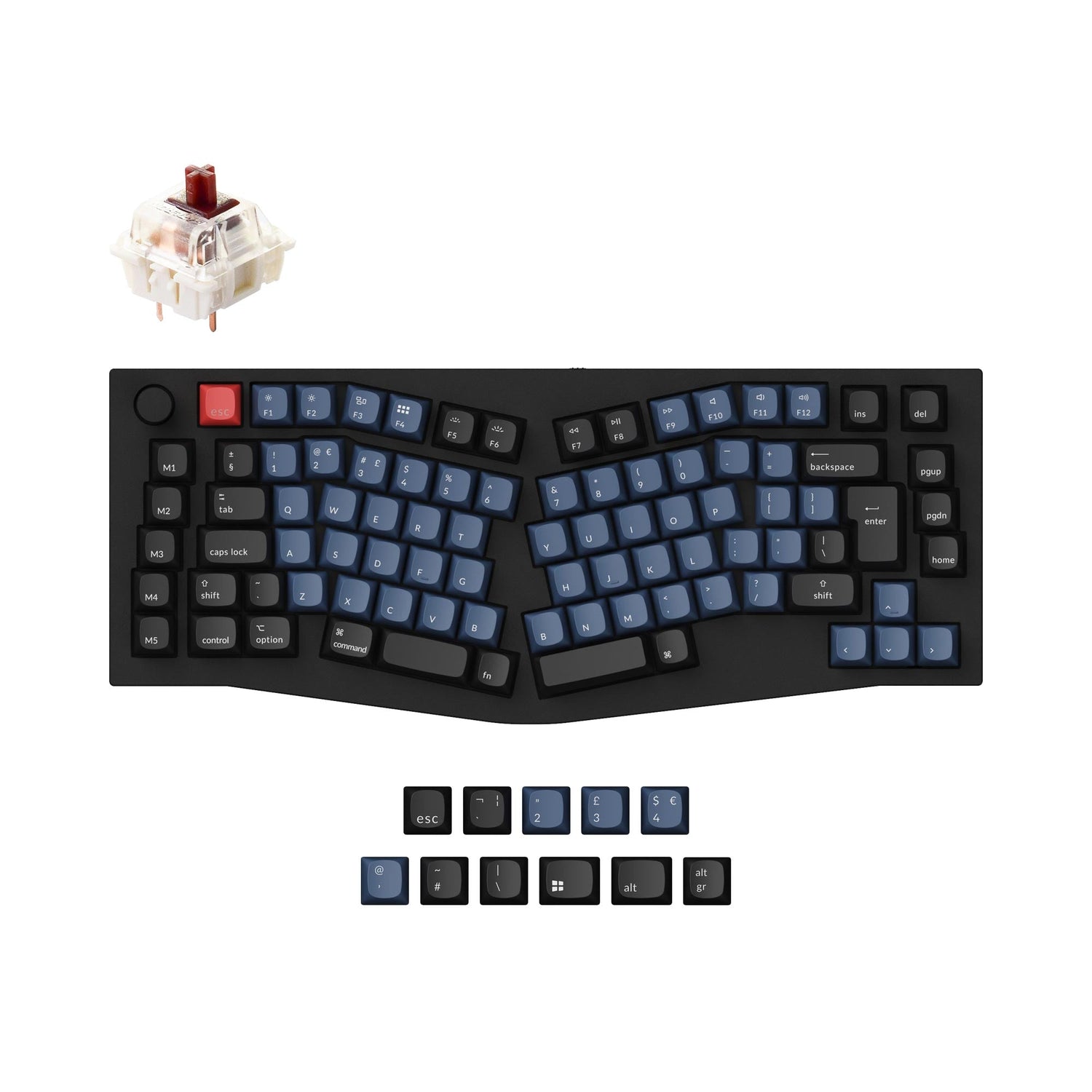

Keychron Q10 UK ISO 75% Alice Layout Custom Mechanical Keyboard

🇫🇷 FR-ISO Layout

Keychron Q10 French ISO 75% Alice Layout Custom Mechanical Keyboard

🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout

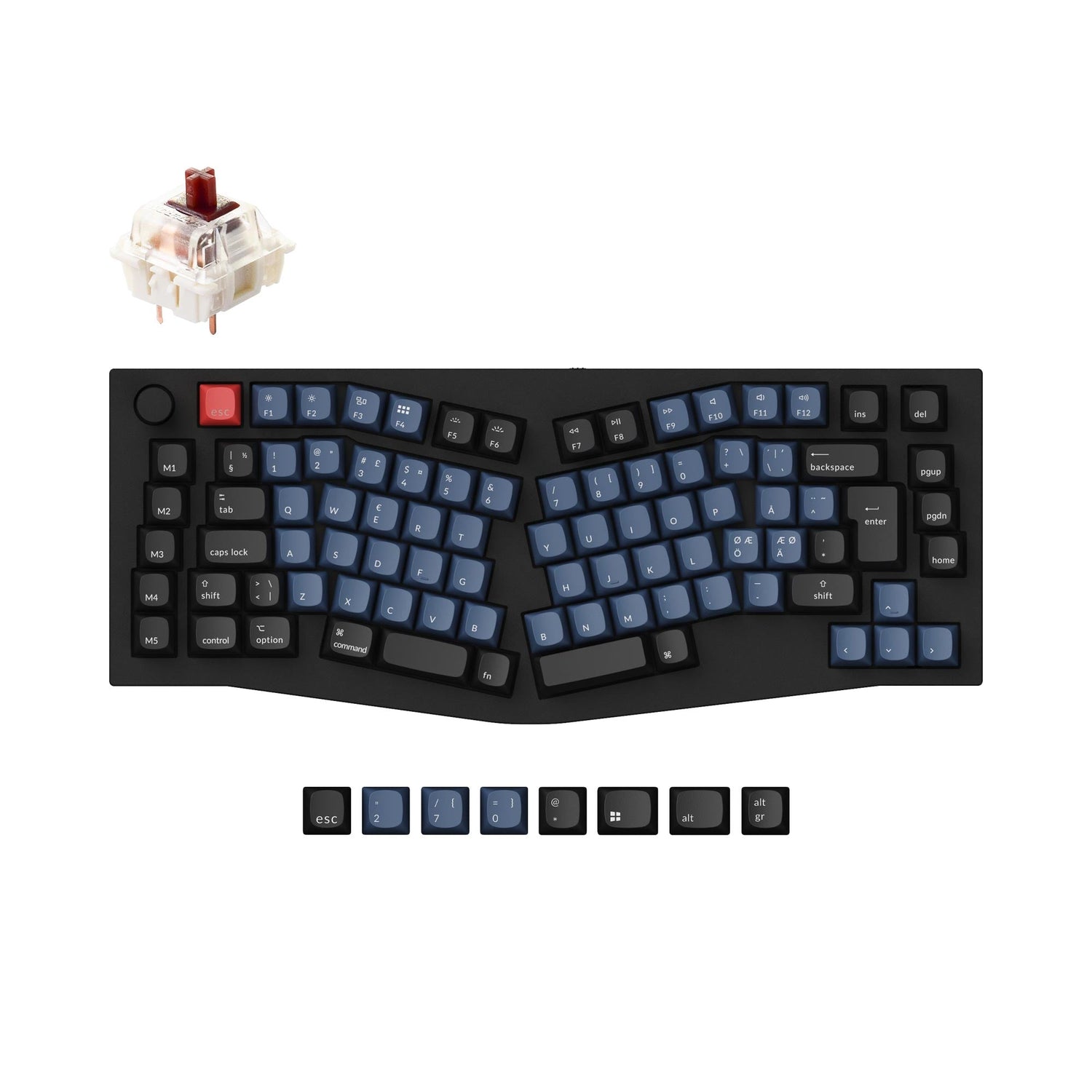

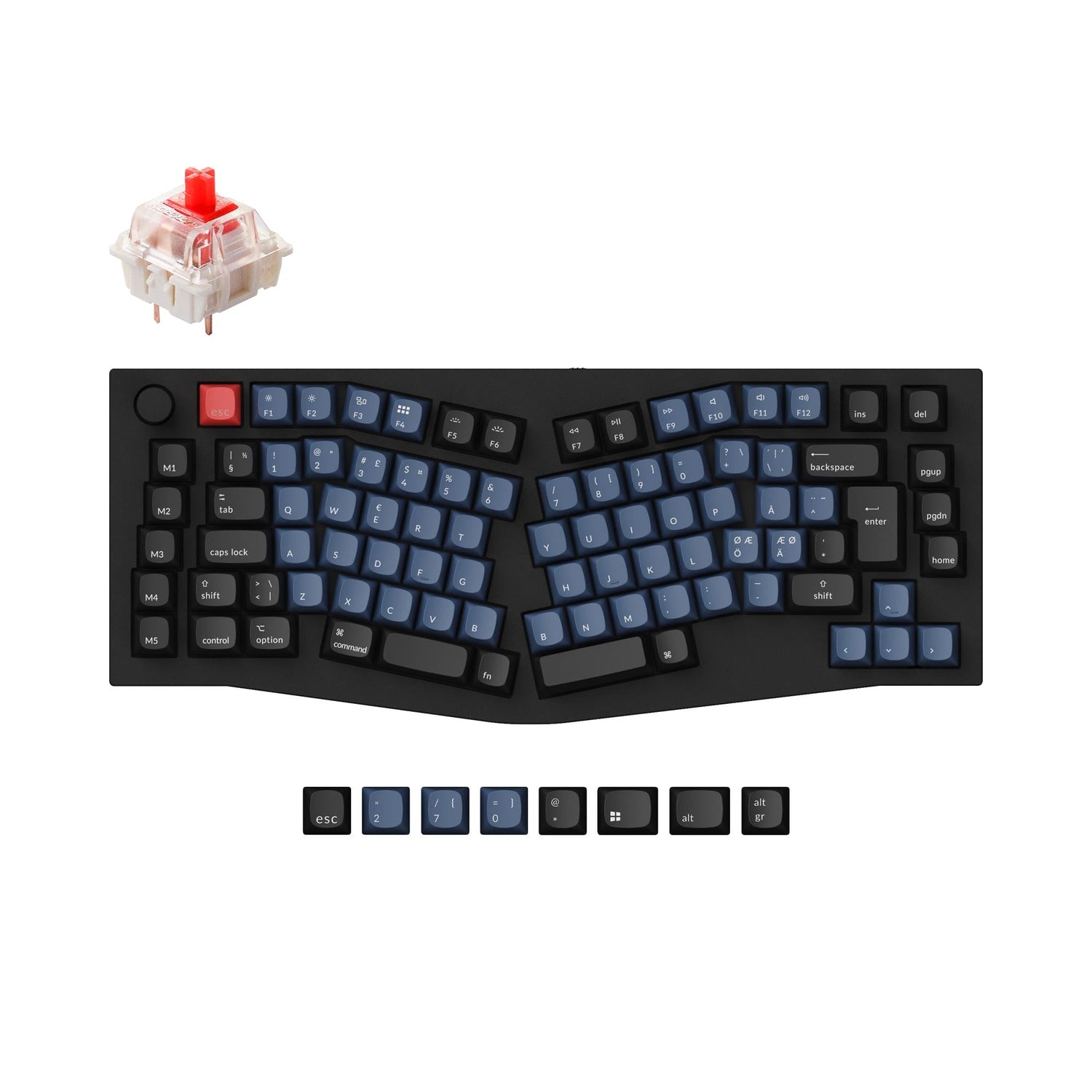

Keychron Q10 Nordic ISO 75% Alice Layout Custom Mechanical Keyboard

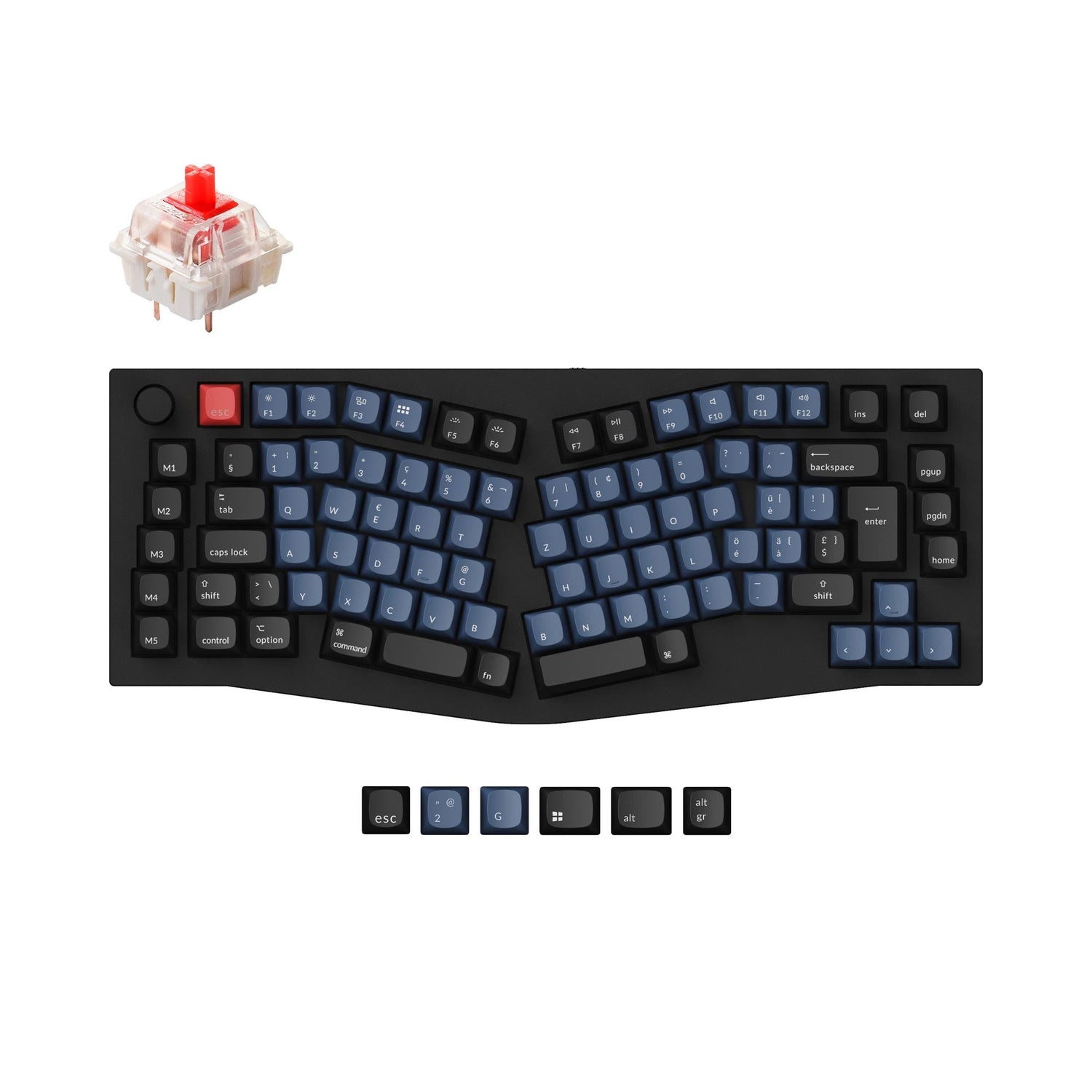

🇨🇭 Swiss-ISO Layout

Keychron Q10 Swiss ISO 75% Alice Layout Custom Mechanical Keyboard

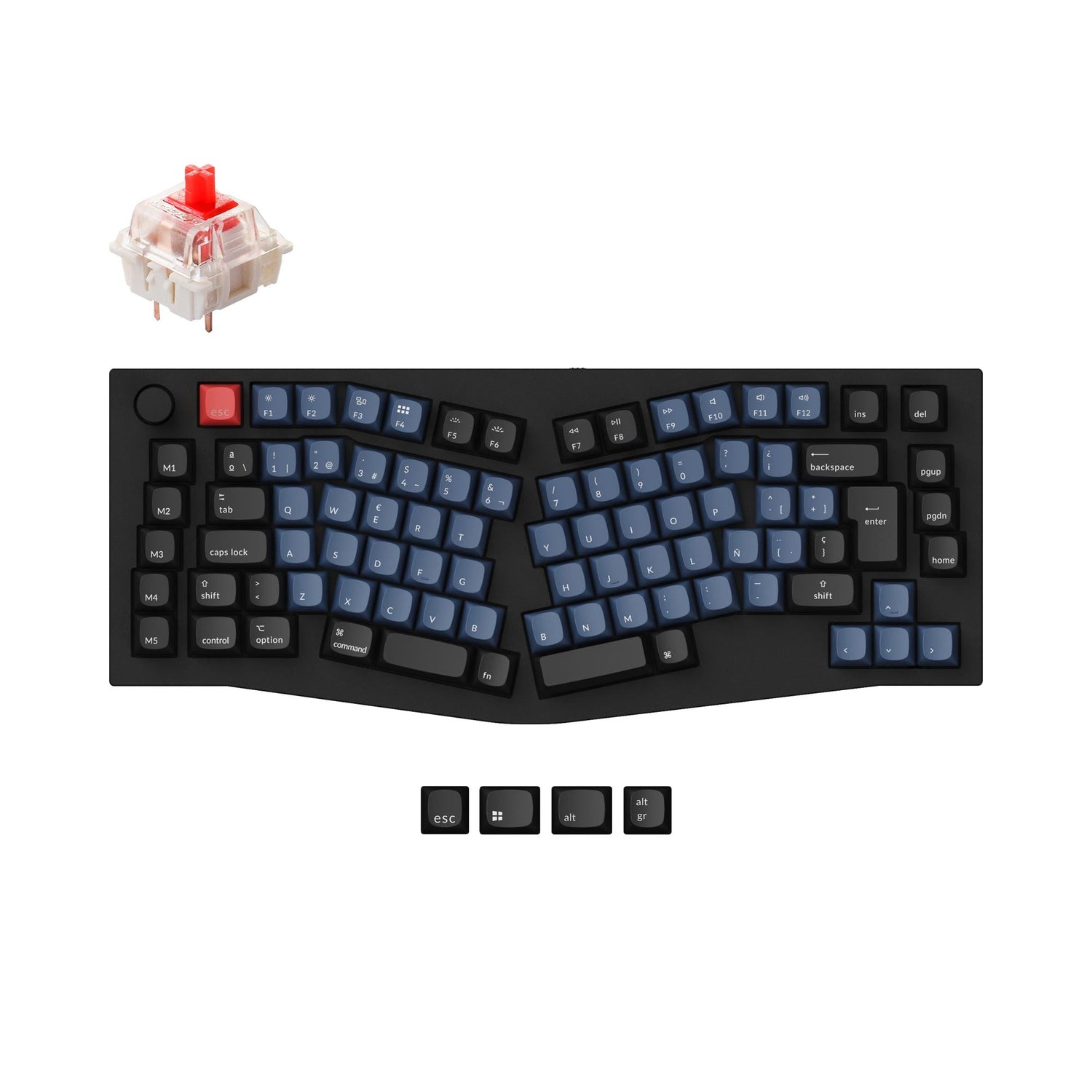

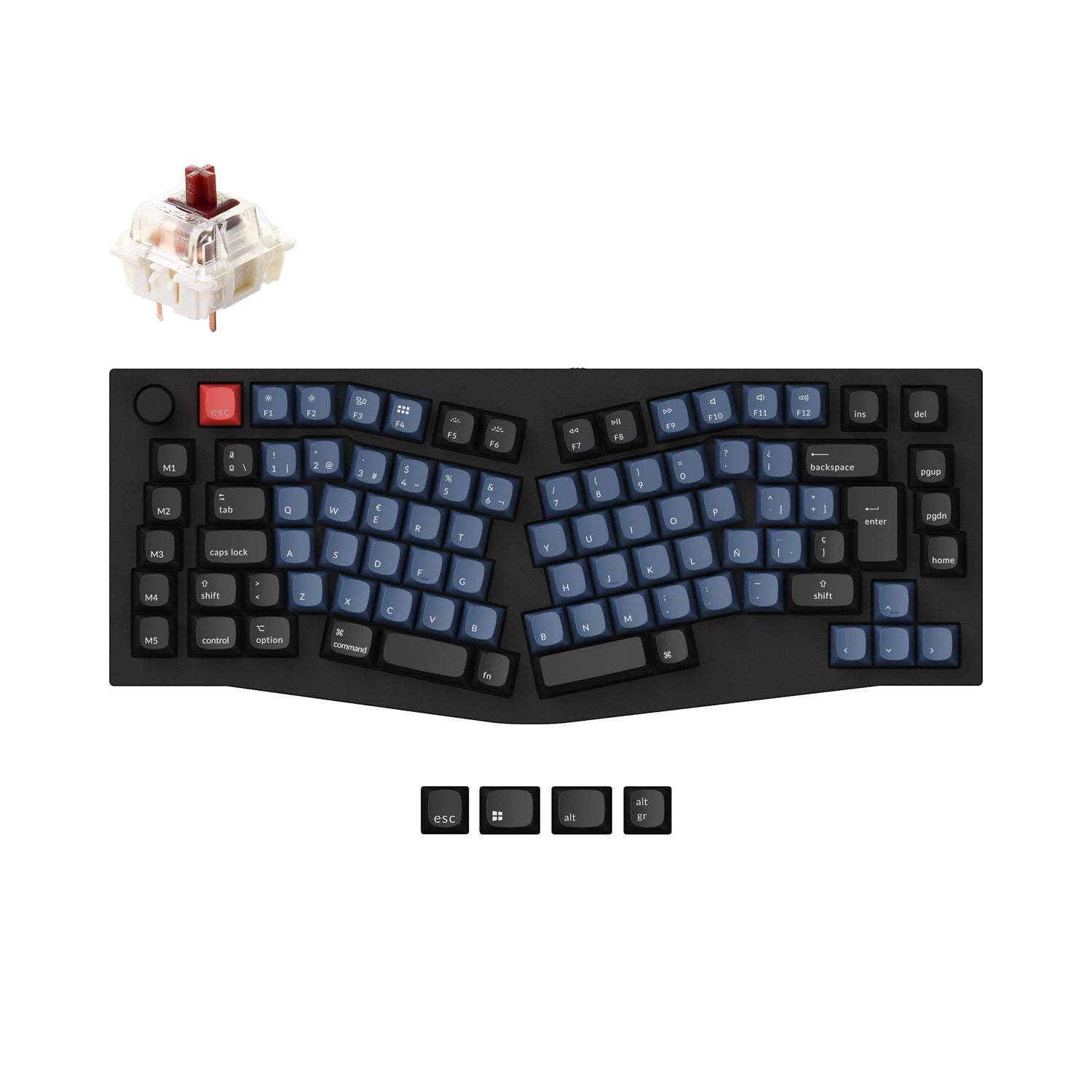

🇪🇸 ES-ISO Layout

Keychron Q10 Spanish ISO 75% Alice Layout Custom Mechanical Keyboard

Keychron Q10 ISO Layout 75% Alice Layout Custom Mechanical Keyboard

With keycaps for macOS installed on Q10 DE-ISO layout.

With keycaps for Windows installed on Q10 DE-ISO layout.

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q10.

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

OSA Profile ABS Backlight Shine-Through Keycaps

To further leverage your typing experience, the Q10 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS backlight shine-through keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q10 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Rotary encoder function of Keychron Q10 ISO Layout 75% Alice Layout Custom Mechanical Keyboard

You can easily customize the Q10's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Program Q10 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

Program Q10 75% Alice Layout with QMK & VIA

Click here to use VIA Keychron Q10 Source Code

Get the Q10 keymap working on VIA

Since the VIA code for the Q10 is still awaiting approval from Github, it is not yet automatically recognized, you will need to manually download and import the Q10 keymap.

To get started, please follow the steps: Download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q10 keymap working on VIA.

Q10 Knob Version Keymap JSON

Download keymap JSON for
Q10 Knob version ISO

Learn more about how to use VIA >

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

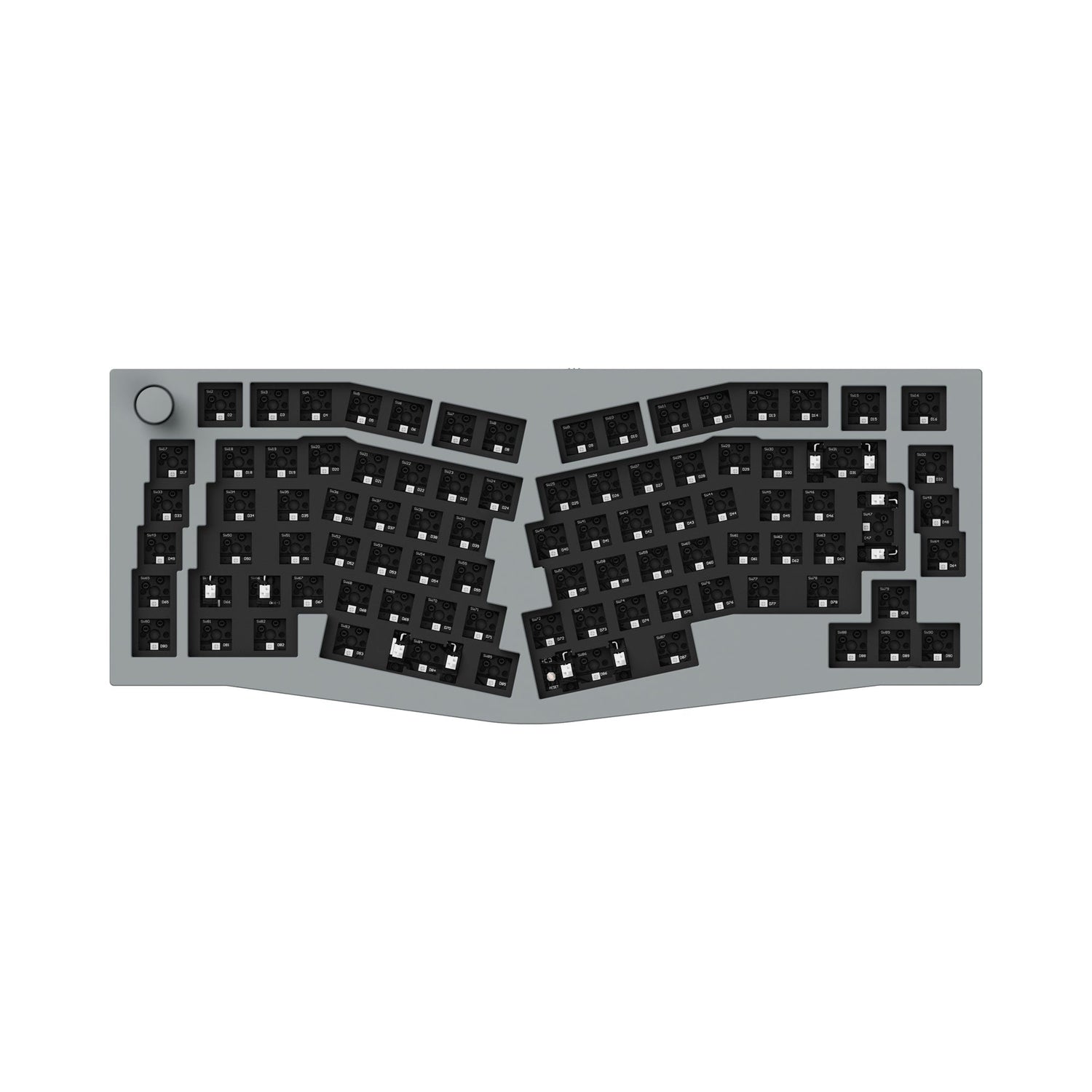

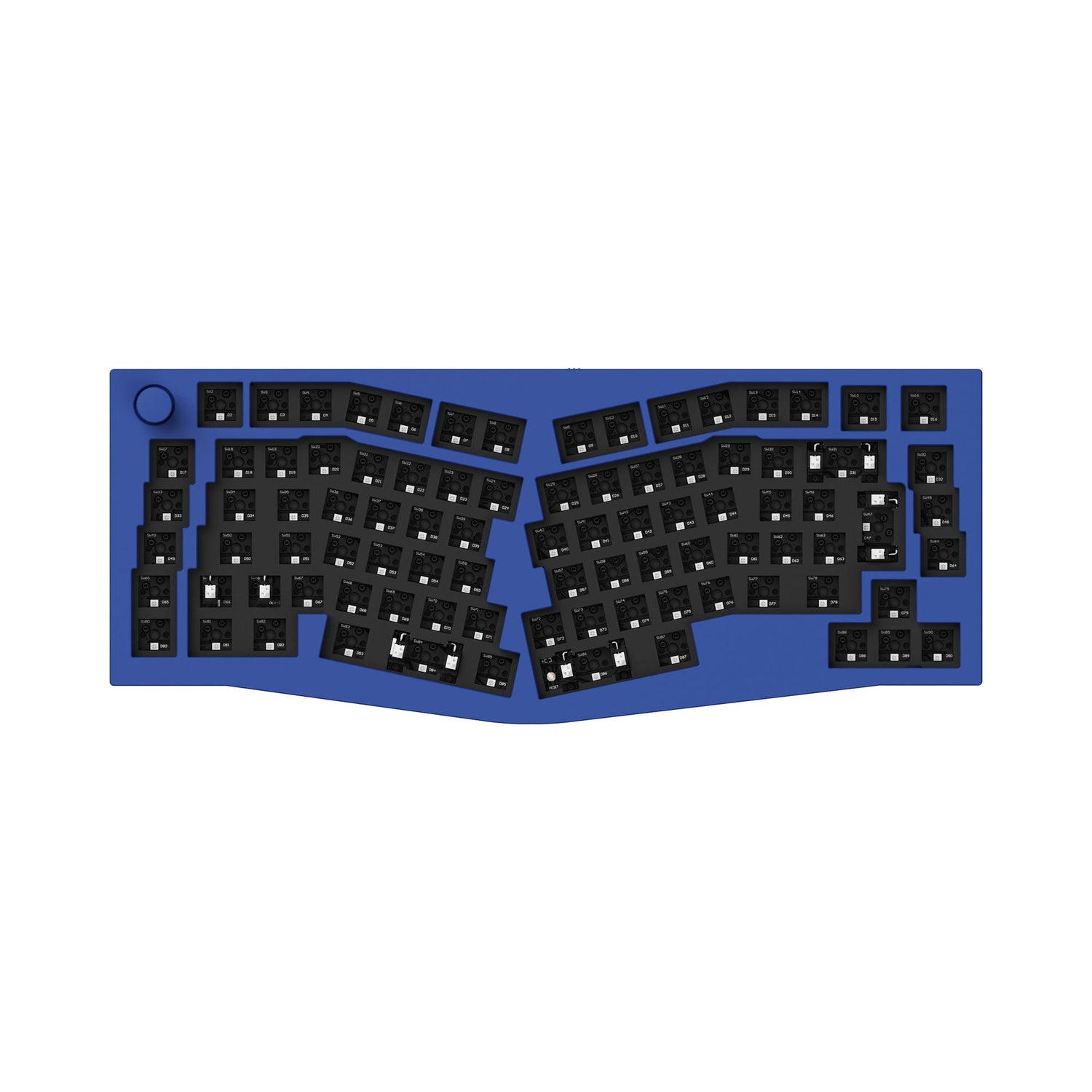

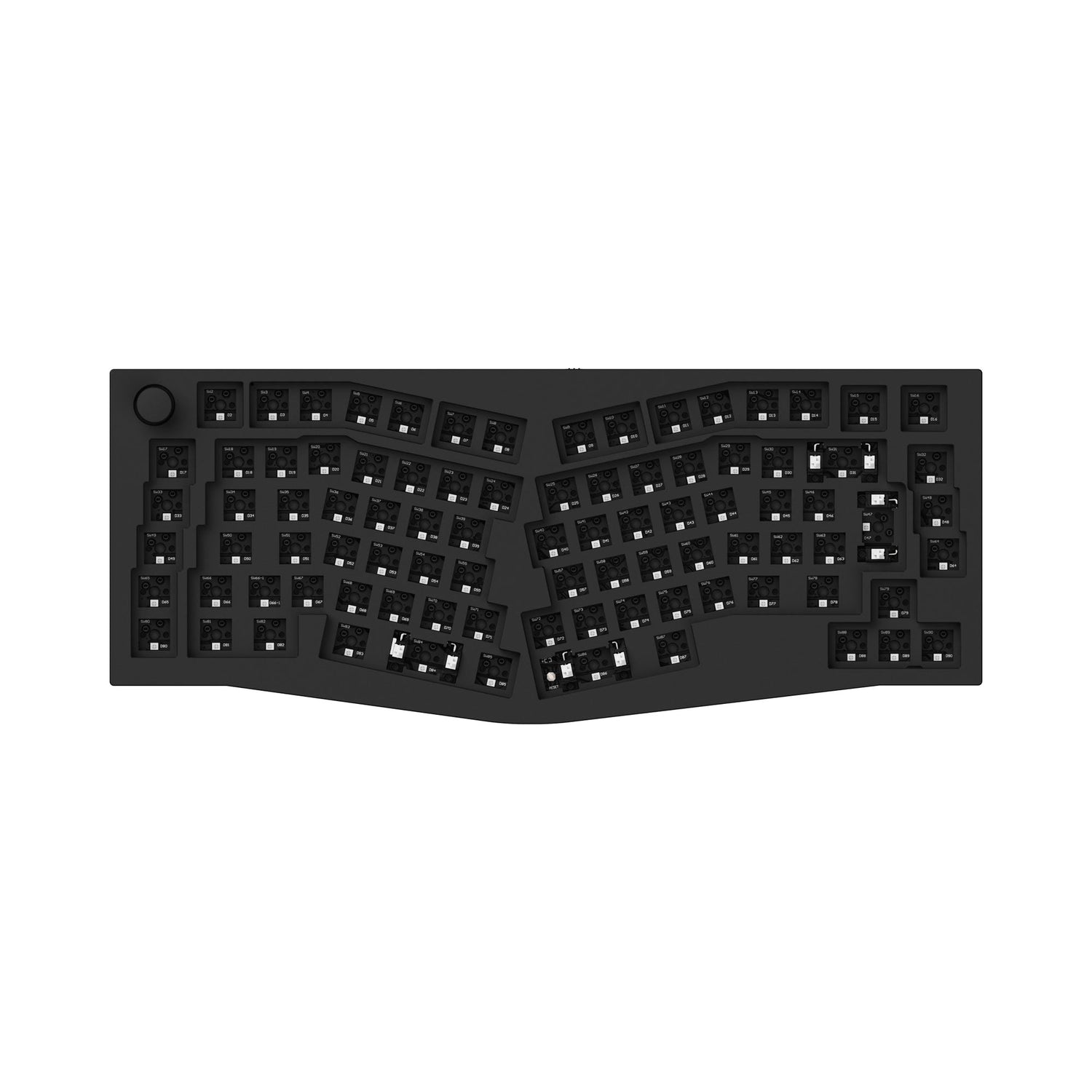

Barebone ISO Layout Keychron Q10 75% Alice Layout Custom Mechanical Keyboard

Pre-lubed Gateron G Pro Switch

The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q10 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q10 also supports third-party screw-in PCB stabilizers.

What's in the box?

Specs

Width	156.9 mm
Length	385.3 mm
Front Height	19.8 mm (without keycaps)
Back Height	33.4 mm (without keycaps)
Feet Height	2.7 mm
Angle	5°
Weight	2460 g ± 10 g (the fully assembled weight)
Body Material	Full CNC machined aluminum
Plate	Steel
Polling Rate	1000Hz
Layout	DE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO

Keycaps (Fully Assembled Version)	OSA Profile ABS backlight shine-through keycaps
Switches	Gateron G Pro (Fully assembled version)
Backlight	South-facing RGB LED
Switch Support	Hot-swappable (5 pin & 3 pin)
Stabs	Screw-in PCB stabs
Connectivity	Type-C cable
Cable	Type-C cable + Type-A to Type-C adapter
MCU	Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment	-10℃ to 50℃

Keychron Q10 User Guide

Learn more about the Keychron Q10 such as the Q10 shortcuts, assembling the Q10, factory reset, and more in the FAQ section.

Finger-to-key placement 3/5, but sound and build 5/5

I used the Keychron K10 for a year now, but wanted to get something without a num pad, and wanted something more ergonomic.
I got the Q10 aluminum base with brown switches and this thing is sturdy and very HEAVY (my guess is about 6lbs). The sheer mass of the keyboard is probably what makes it the best sounding keyboard I have now (thocky ASMR), but I definitely could see how the weight could be an issue for some.

My main dislike, however, is the placement of the keys! The keys are laid out in an upper-case 'Y' shape, which makes proper finger placement very uncomfortable, particularly when your pinky fingers need to reach the P-KEY which is in the furthest corner (also Q and P are not aligned, why?). Because of this odd placement, I have to flare my elbows out away from my body (think chicken dance) so my pinkies can reach the corners- which doesn't feel very ergonomic to me. I want my elbows close to my body, not spread out and leaning forward so my pinky-finger can reach the P-KEY. It's Day-2, and I already feel strain on my forearm and back.

In my opinion, the keys should be laid out in more of a rounded curve, like a lower-case 'm' shape (not 'Y'). The pinky is the shortest finger and shouldn't have to reach for a key in the furthest corner (especially P which is so commonPlace). I really like the Q10, but honestly, if Keychron offered free returns/refunds, I would consider returning this and continue using the k10. (...yes, the P-KEY is bothering me that much)
