Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection - Fully Assembled Knob (Carbon Black) / DE-ISO / Gateron Jupiter Brown is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- The keyboard PCB, the case, and the PC plate.
- Keycaps (included Mac & Windows keycaps).
- Switches.
ISO options: German, Nordic, UK, Swiss.
No discount codes can be used for the Q3 Max.
Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard ISO Lay...
Keychron Q3 Max
ISO Layout Collection
The Q3 Max Keyboard, featuring an 80% TKL layout, combines advanced 2.4G wireless, Bluetooth, and Type-C wired connectivity, enhances workspaces by reducing clutter and facilitating efficient remote work. Its upgraded acoustic foam not only ensures quieter typing but also elevates the tactile experience, making each keystroke smoother and more refined.
Choose the keycaps, switches, and more accessories for your Q3 Max ISO.
Q3 Max ISO Layout Versions
These versions include the UK, German, Swiss, and Nordic layouts, all with extra keycaps suitable for Mac and Windows devices.

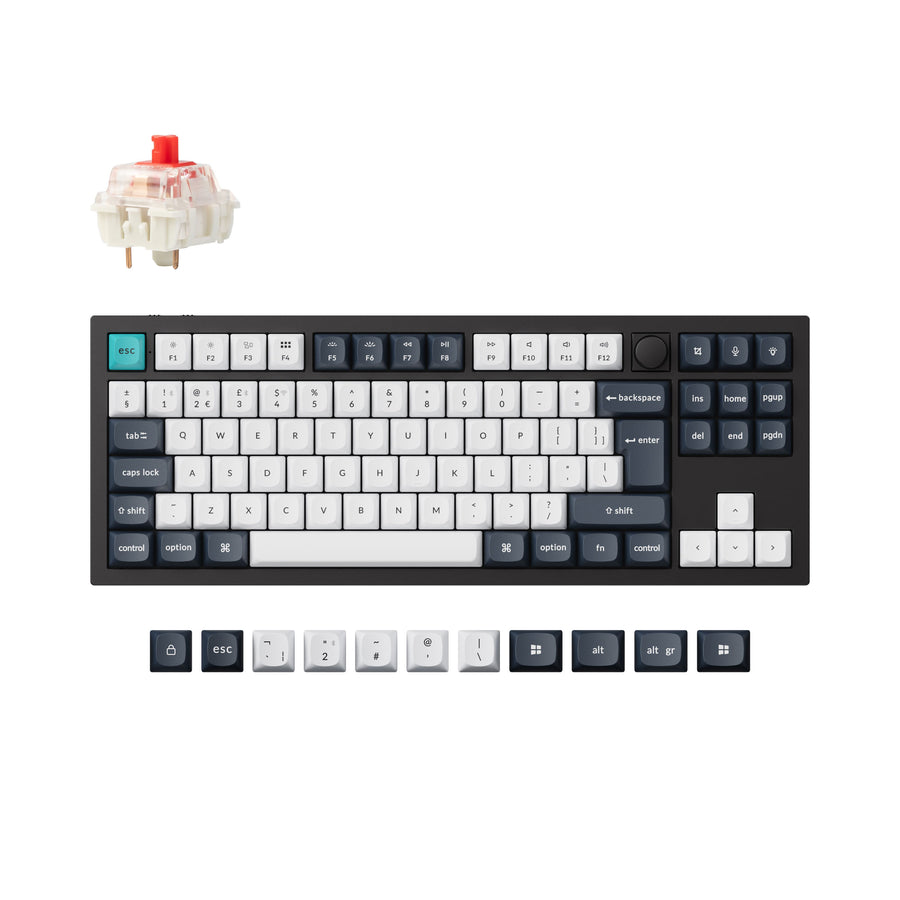

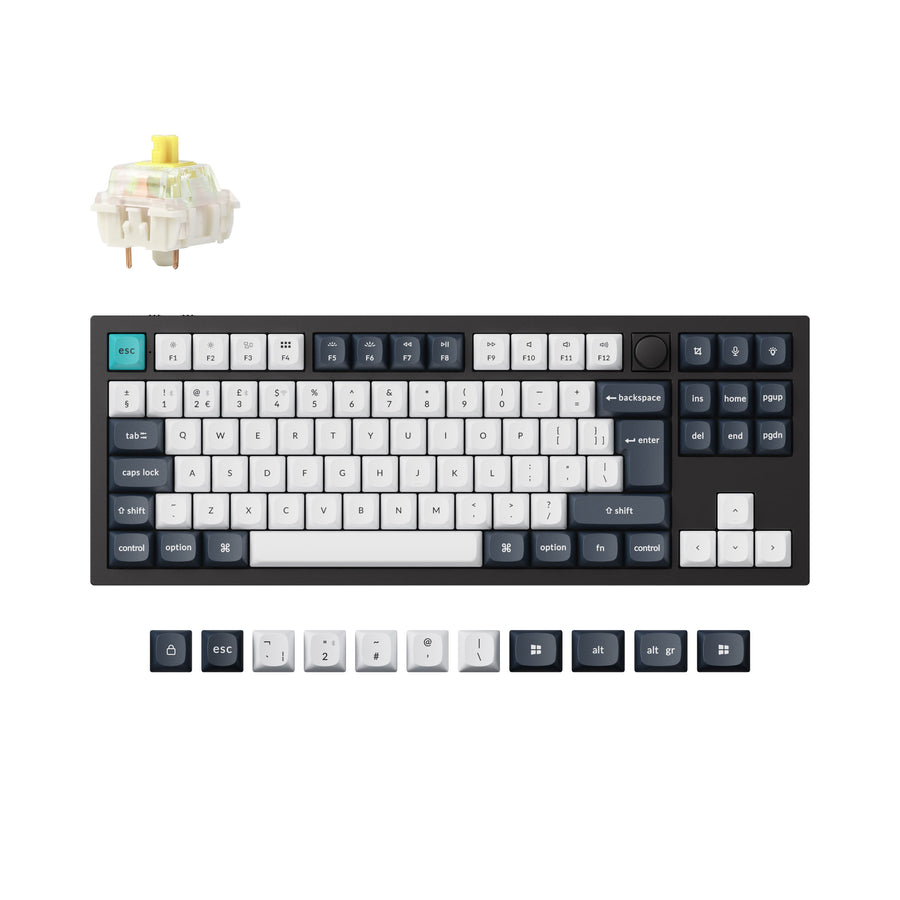

🇬🇧 UK-ISO Layout
🇩🇪 German DE-ISO Layout

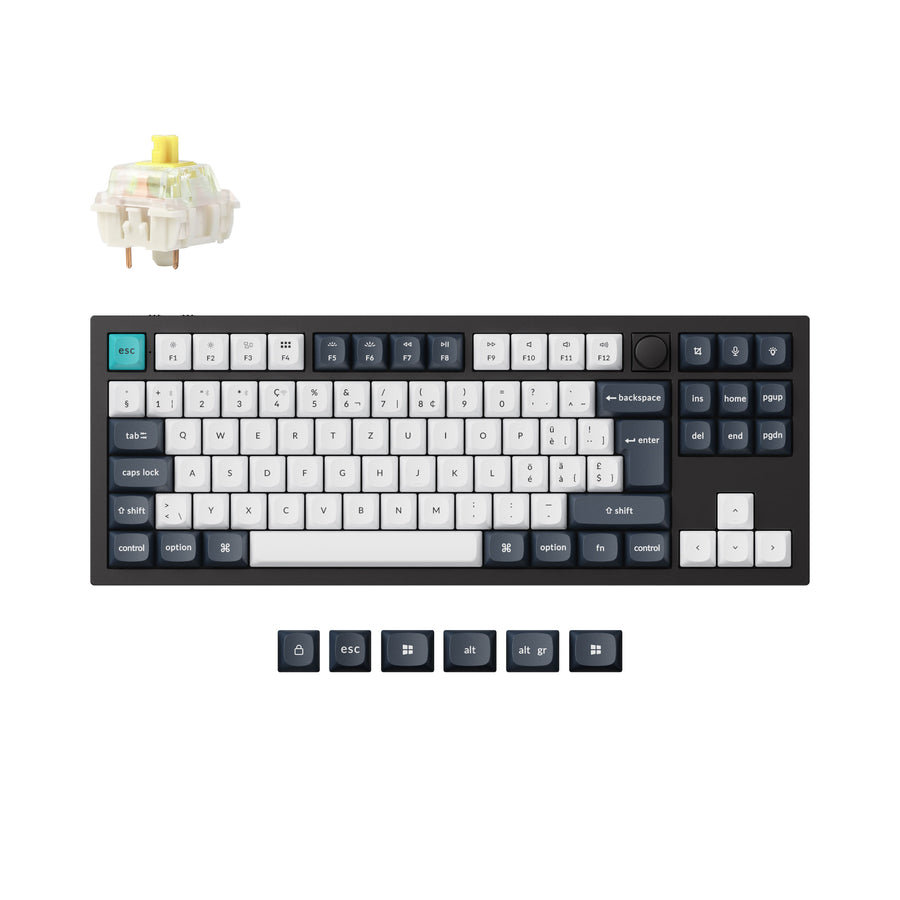

🇨🇭Swiss-ISO Layout
🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout
2.4 GHz & Bluetooth Connection
Discover enhanced performance with the Q3 Max Keyboard, featuring a 2.4 GHz wireless connection and a rapid 1000 Hz polling rate for responsive use. It also offers Bluetooth 5.1 connectivity, allowing easy and efficient multitasking by connecting with up to three devices, such as your computer, phone, and tablet, with quick switching capability.
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q3 Max.
Significantly Enhanced Acoustic Foams
Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.
Easy Assemble
We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.
An Epic Core Inside The Keyboard
A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.
Double Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate. This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
OSA Double-Shot PBT Keycaps
To further fine-tune your typing experience, the Q3 Max ISO comes with our unique OSA profile (OEM profile with spherical-angle) and double-shot PBT keycaps that aim to provide a more comfortable fingertip feel with excellent oil resistance for long-term use on the TKL layout.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility with Windows devices, the Keychron Q3 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program Q3 Max with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.
Check out the video above demonstrating how to remap the RGB Mode + key to an Eject key with the VIA software to create a shortcut to put your Mac to sleep (Command-Option-Eject).
Get the Q3 Max keymap working on VIA
Since the VIA code for the Q3 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q3 Max keymap working on VIA.
Download Q3 Max Knob ISO Keymap JSON File
Hot-Swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Gateron Jupiter Switch
Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
All New Screw-in PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron Q3 Max also supports third-party screw-in PCB stabilizers.
What's in the box?
Specs
| Width | 137 mm |
|---|---|
| Length | 365 mm |
| Front Height | 19.7 mm (without keycaps) |
| Back Height | 32.6 mm (without keycaps)
|
| Feet Height | 2.7 mm |
| Body Material | Aluminum |
| Polling Rate | 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth) |
| Angle | 5.2° |
| Plate Material | PC |
| Weight | 2045g ± 10g (Fully Assembled Version) |
| Backlight | 22 types of RGB backlight options plus endless possibilities |
| Operating Environment | -10℃ to 50℃ |
| Keycaps (Fully Assembled Version) | OSA double-shot PBT keycaps, not shine-through (Fully Assembled version) |
|---|---|
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Switches | Gateron Jupiter (Fully Assembled version) |
| Backlight | South-facing RGB LED
|
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabilizer | Screw-in PCB stabilizer |
| Connectivity | 2.4 GHz/Bluetooth/ Type-C wired |
| Cable | Type-C cable + Type-A to Type-C adapter |
| Charging Time | Around 5 hours |
| Bluetooth Device Name | Keychron Q3 Max |
| Battery | 4000 mAh Rechargeable li-polymer battery |
| Cable Length | 1.8 m |
|---|---|
| Wireless Working Time (Backlit off) | Up to 180 hours (Lab test result may vary by actual use) |
| Wireless Working Time (RGB) | Up to 100 hours (Lowest brightness) |
| Bluetooth Version | 5.1
|
| Compatible System | macOS/Windows/Linux |
| Charging Port | USB type-C |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. |
Learn more about the Keychron Q3 Max such as the Q3 Max shortcuts, assembling the Q3 Max, factory reset, and more in the FAQ section.
