De volledig geassembleerde versie omvat:
- De printplaat van het numerieke toetsenbord, de behuizing en de stalen plaat
- Dubbel-shot OSA PBT-toetsenbord
- Gateron G Pro-schakelaars
De barebone-versie bevat niet de toetsdoppen en schakelaars.
Voor Q0 kunnen geen kortingscodes worden gebruikt.
Gelieve uw e-mail achter te laten op "Informeer mij wanneer beschikbaar" als het productmodel niet op voorraad is.
Please note that the frame color may be slightly different from other Q series keyboards as the Q0 was manufactured separately.
Keychron Q0

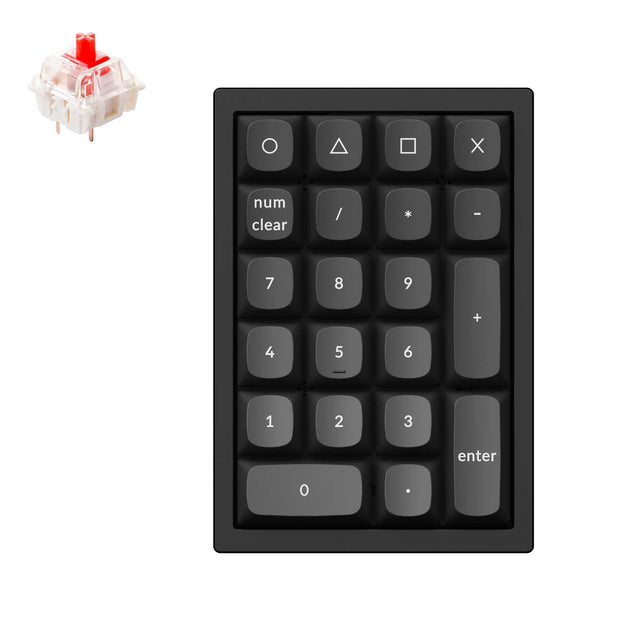

The Q0 is a mini custom number pad, it’s designed as a number pad or it can act as an extra key set of macros. With its all-metal CNC machined body, screw-in stabs, hot-swappable function, RGB LEDs, pre-lubed switches, and QMK/VIA support, the Q0 is the best customizable number pad for you.
Choose the keycaps, switches and more accessories for your Q0
Premium Metal Gadget
The mini metal body is crafted with 6063 aluminum that is processed through CNC machines, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make the Q0 a beautifully crafted gadget for your desk.
Fully Customizable Number Pad
To build a fully customizable number pad, we designed every component easily assembled so you can customize and adjust each element as you wish.
More Than a Number Pad Program the Q0 with QMK & VIA
With full QMK and VIA support, you can program and remap each key on this number pad with ease. The open-source firmware means endless possibilities for layouts, shortcuts, backlight effects, and more.
A brand new ultra-low-power Arm MCU structure that is powerful and armed with 128K Flash to provide developers with more flexibility.
Get the Q0 keymap working on VIA
To get started, please follow the steps: Download the appropriate keymap JSON file below, open VIA, turn on the "Show Design tab" on the "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q0 keymap working on VIA. Since the VIA code for the Q0 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and enter the Q0 keymap.
Note: Only the right JSON file can be input, please find the right version keymap JSON file which matches your number pad to download.
Keychron Q0 Keymap JSON File
OSA Profile Double-shot PBT Keycaps
For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (0, +, enter) typing experience is now more stable and smoother. The Keychron Q0 also supports third-party stabilizers, including Cherry or Durock.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the number pad backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the number pad.
Note: The Q0's top case has sharper corners to make it much more compatible with third-party keycaps.
Pre-lubed Gateron G Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q0 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.
Typing Sound Test
What's in the box?
Specs
| Width | 128.8 mm |
|---|---|
| Length | 88.8 mm |
| Front Height | 12.8 mm (without keycaps) |
| Back Height | 29.3 mm (without keycaps) |
| Feet Height | 2.4 mm |
| Angle | 5.2° |
| Weight | 2200 g ± 10g (the fully assembled weight) |
| Body Material | Full CNC machined aluminum |
| Plate | Steel |
| Polling Rate | 1000Hz |
| Mounting Style | Tray Mount |
| Keycaps (Fully Assembled Version) | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
|---|---|
| Switches | Gateron G Pro (fully assembled version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Operating Environment | -10℃ to 50℃ |
Learn more about the Keychron Q0 such as the Q0 shortcuts, assembling the Q0, factory reset, and more in the FAQ section.
