Keychron Q1 / Q1 Pro / Q1 Max akoestische upgradekit

Name: Keychron Q1 / Q1 Pro / Q1 Max akoestische upgradekit
Brand: Keychron
SKU: AUK-Q1
Price: 10.0 EUR
Availability: InStock

SKU: AUK-Q1

€10,00

Compatibel toetsenbord

Keychron Q1 & Q1 Pro & Q1 Max

Materiaal

Poron & XPE

Productvarianten

Compatibele toetsenborden: Q1 / Q1 Pro / Q1 Max

Laat uw e-mail achter op "Houd mij op de hoogte wanneer beschikbaar" als het productmodel niet op voorraad is.

Keychron Q1 & Q1 Pro Acoustic Upgrade Kit

Want to optimize your Q1 or Q1 Pro keyboard typing experience? Try this upgrade kit! Made of Poron & XPE material, the kit includes sound-absorbing foam, PE foam, and bottom frame acoustic foam, all to further modify your keyboard for an improved and enhanced typing experience.

Foam modding the Q1 or Q1 Pro with this acoustic upgrade kit can further eliminate the hollowness of the keyboard and reduces the resonance on each keystroke.

Foam mod the Q1 or Q1 Pro with the acoustic upgrade kit

How to modify your Q1 or Q1 Pro with this kit?

The entire keyboard needs to be taken apart for kit installation. You can refer to the disassembling guide first (Q1 disassemble guide / Q1 Pro disassemble guide), and then watch the following clip for kit installation.

00:00: Apply the PE foam on the keyboard PCB.
00:29: Place the sound absorbing foam between the plate and the PCB.
00:50: Place the acoustic foam on the bottom case.

Specs

Package Contents	Material	Thickness	Size	Compatible keyboard
1x Sound absorbing foam	Poron	3.5 mm	310.08*126.74 mm	Keychron Q1 / Q1 Pro ANSI layout
1x PE foam	XPE	0.3 mm	310.38*126.77 mm	Keychron Q1 / Q1 Pro ANSI layout
1x Bottom frame acoustic foam	Poron	2.5 mm	311.38*126.77 mm	Keychron Q1 / Q1 Pro ANSI layout
4x Gasket

*XPE foam is a new high-grade PE material with better mechanical and physical properties in stability, durability, and insulation effects.

Frequently bought together (Add-on)

Please select the matching variant for your product.

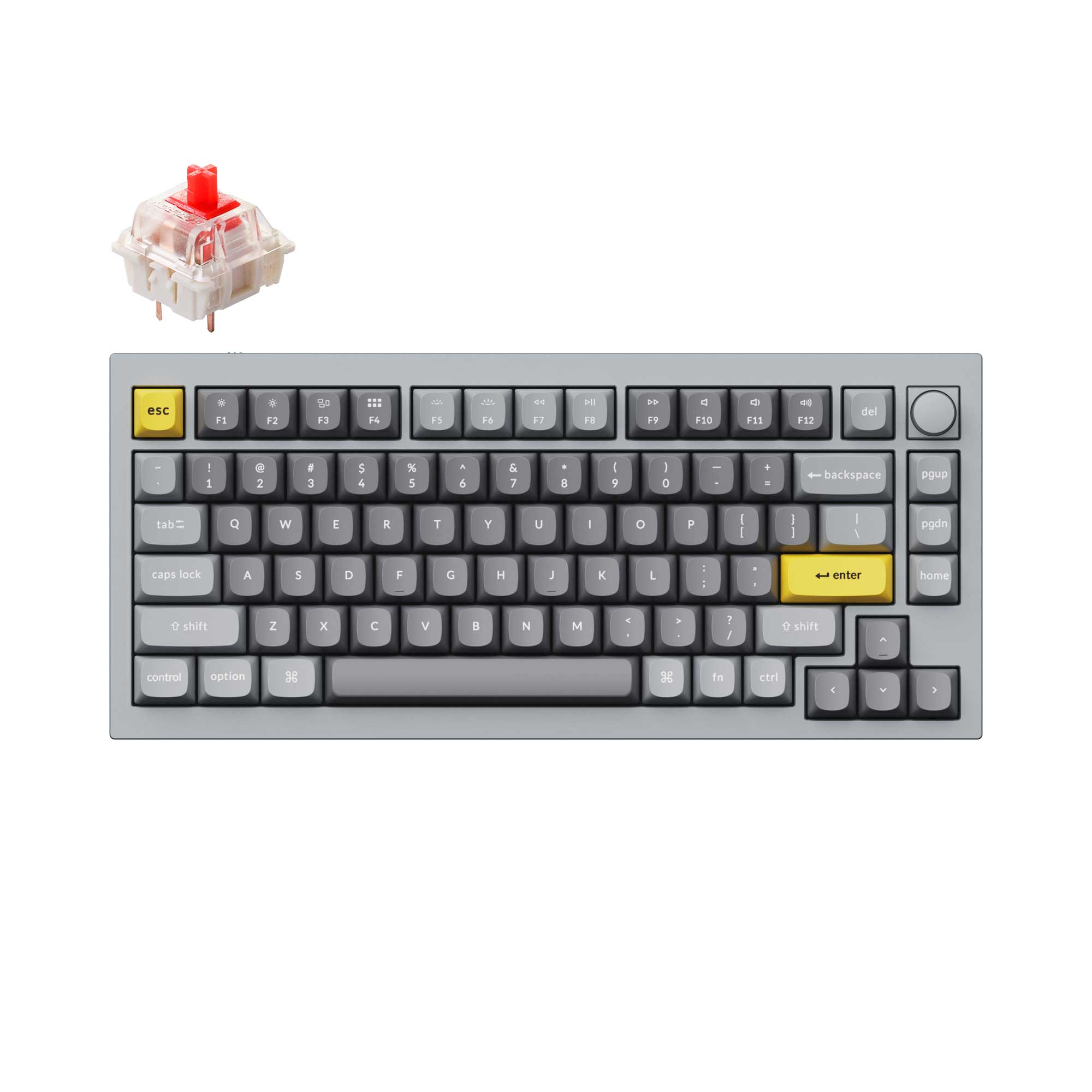

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum black frame for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch red

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum grey frame for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch red

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum blue frame for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch red

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum black frame knob version for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch red

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum grey frame knob version for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch red

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum blue frame knob version for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch red

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum black frame B knob version for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch red

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum grey frame B knob version for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch red

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum blue frame B knob version for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch red

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum black frame knob for Mac Windows iOS RGB backlight with hot swappable Gateron phantom switch yellow

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum black frame B knob for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch blue

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum grey frame B knob for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch brown

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum blue frame B knob for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch brown

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum grey frame knob for Mac Windows iOS RGB backlight with hot swappable Gateron phantom yellow

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum blue frame knob for Mac Windows iOS RGB backlight with hot swappable Gateron phantom yellow

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum knob version Mac Windows RGB backlight hot swappable champagne gold Gateron G Pro red switch

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum white frame knob version for Mac Windows iOS RGB backlight with hot swappable Gateron G Pro switch red

Keychron-Q1-75-percent-QMK-Custom-Mechanical-Keyboard-version-2-barebone-knob-black

Keychron-Q1-75-percent-QMK-Custom-Mechanical-Keyboard-version-2-barebone-knob-grey

Keychron-Q1-75-percent-QMK-Custom-Mechanical-Keyboard-version-2-barebone-knob-blue

Keychron-Q1-75-percent-QMK-Custom-Mechanical-Keyboard-version-2-barebone-black

Keychron-Q1-75-percent-QMK-Custom-Mechanical-Keyboard-version-2-barebone-grey

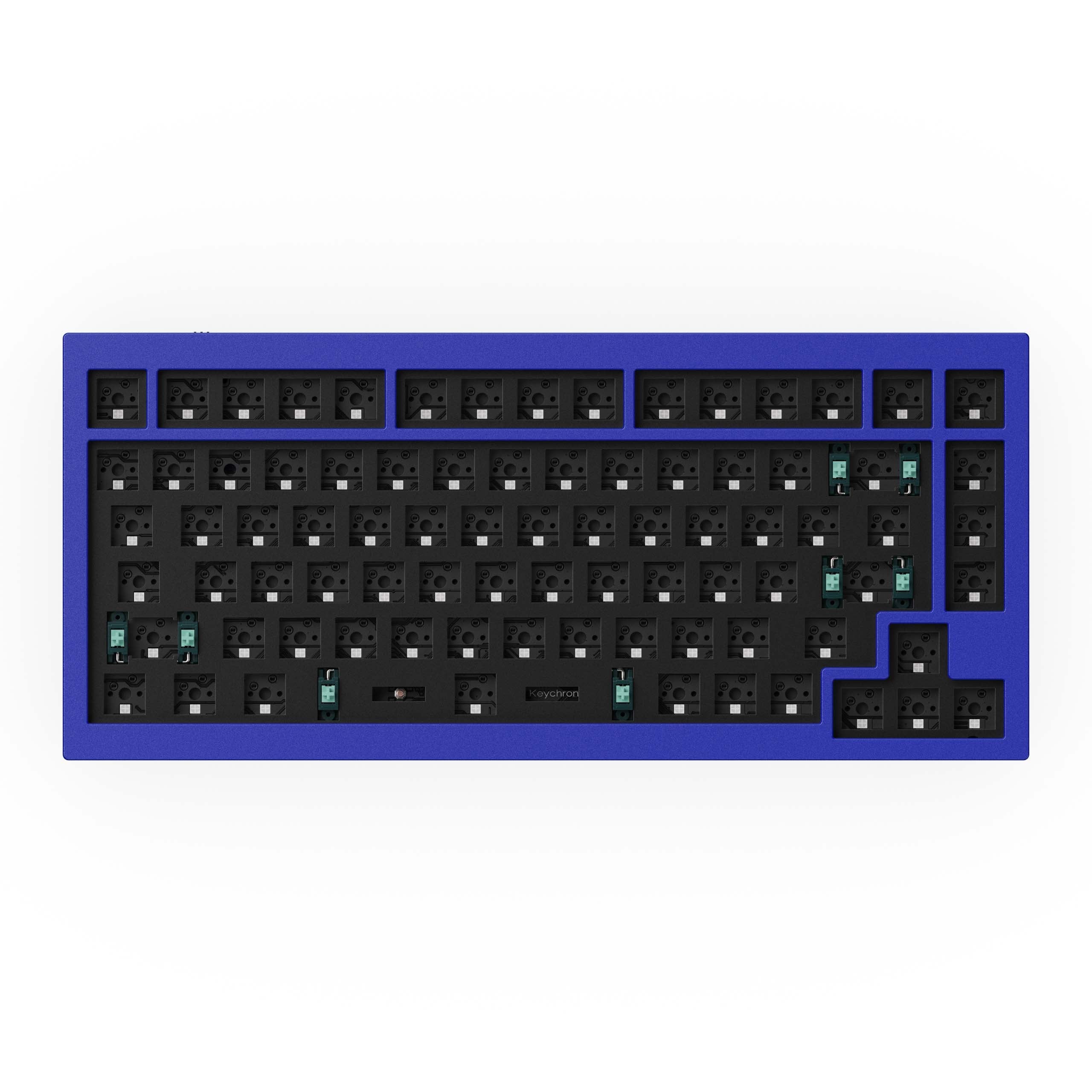

Keychron-Q1-75-percent-QMK-Custom-Mechanical-Keyboard-version-2-barebone-blue

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum knob version Mac Windows RGB backlight hot swappable Special Edition Red Gateron G Pro red switch

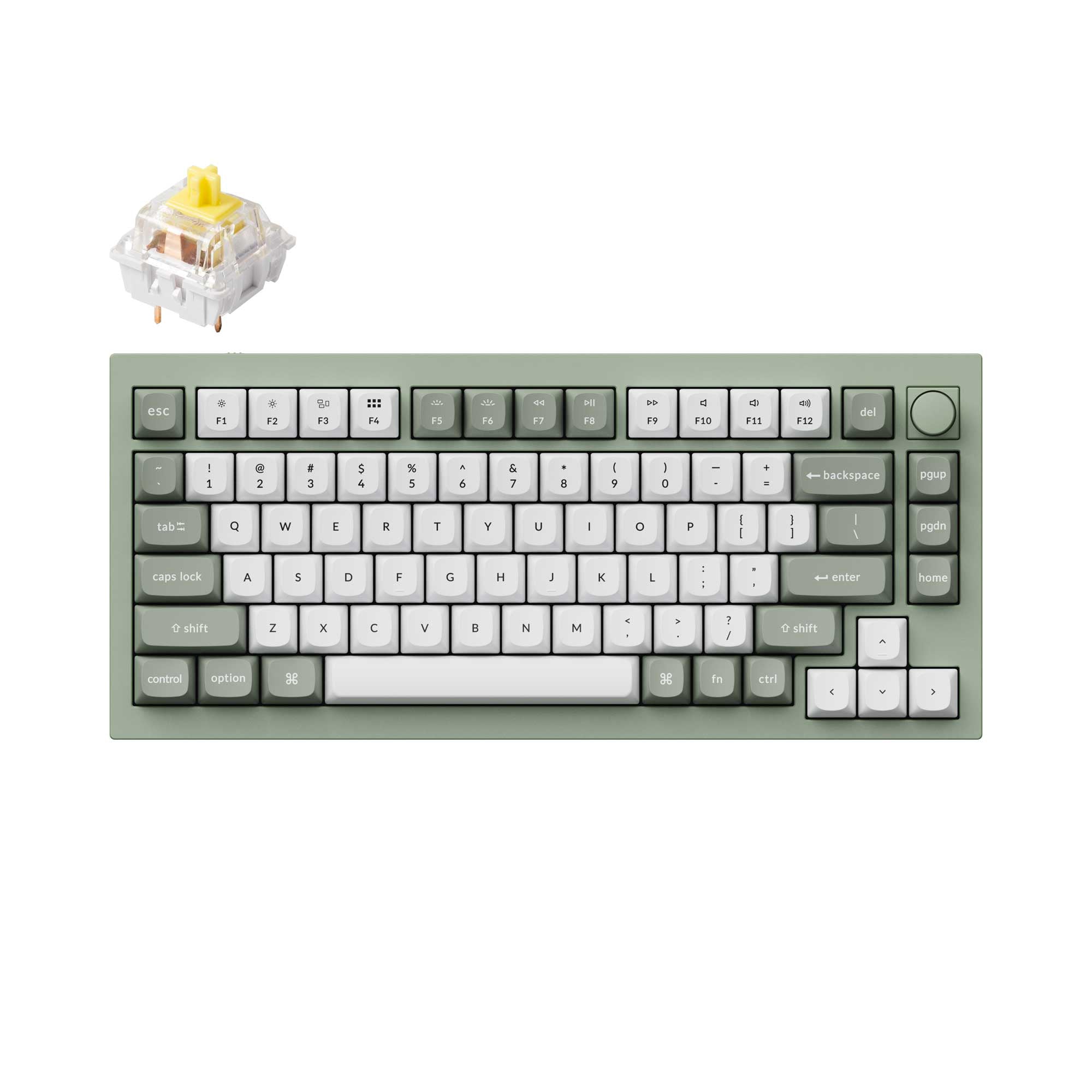

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum knob version Mac Windows Linux RGB backlight hot swappable purple K Pro banana switch

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent full aluminum knob Mac Windows RGB backlight hot swappable Special Edition Retro Keychron K Pro red switch

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent full aluminum knob Mac Windows RGB backlight hot swappable Special Edition green Keychron K Pro red switch

Keychron Q1 QMK VIA custom mechanical keyboard 75 percent layout full aluminum knob version Mac Windows RGB backlight hot swappable orange yellow Gateron G Pro red switch

Keychron Q1 QMK aangepast mechanisch toetsenbord - versie 2 (US ANSI-toetsenbord)

Crafted with canvas and EVA plastic, the Keychron keyboard carrying case is designed to protect your keyboard in style.

Keychron carrying case for k6 k6 pro plastic version keyboard

Keychron carrying case for k6 k6 pro aluminum version keyboard

Keychron K14 keyboard carrying case K14 aluminum version

Keychron K14 keyboard carrying case K14 plastic version

Keychron draagtas voor toetsenbord en muis

Carrying Case for Keychron Q6 Custom Mechanical Keyboard

Keychron K10 Keyboard Carrying Case For Plastic Frame Version

Keychron K10 Keyboard Carrying Case For Aluminum Frame Version

Keychron draagtas voor toetsenbord en muis

Double Shot ABS volledige set Keycap-set

Double Shot ABS volledige set Keycap-set

Double Shot PBT OSA Full Set Keycap Set Retro

Double Shot PBT OSA Full Set Keycap Set White On Black

Double Shot PBT OSA Full Set Keycap Set Black On White

Double Shot OSA PBT Keycap Full Keycap Set - Grey

Double Shot OSA PBT Keycap Full Keycap Set - Blue and White

Double Shot OSA PBT Keycap Full Keycap Set - Purple

Double Shot OSA PBT Keycap Full Keycap Set - Dark Grey

Double Shot PBT OSA volledige set Keycap-set

Keychron wooden palm rest for q3 keyboard

Keychron houten palmsteun

Keychron Resin Palm Rest for K8 K8 Pro C1

Palmsteun van Keychron-hars

1 2 3 4 5 6 7

This brought my Q1v2 to another level

I tested many different solutions. Currently with the Gateron G pro v2 Red and Durock V2 stabs I was left wanting more with the sound of the Q1.
The best by far sound I got out of this combo was using this acoustic upgrade.
Using (as shown in the instruction vid here) the two layers that are on the top of the PCB (i.e. the sound absorbing foam which replaces the original under the top plate, and the thin PE foam that is directly on top of the PCB and under the stabs, the bottom part setup that sounded best in my case:
1. Leave the shielding black plastic layer in the bottom frame, but remove the original thin foam layer.
2. Put the bottom frame acoustic foam layer that comes in this upgrade kit on top of the shielding plastic.
3. Add two layers (no need for more) of tape mod to the bottom of the PCB.
4. That's it! Thoccccy AF
