Keychron Q7 QMK Aangepaste mechanische toetsenbord ISO-indelingscollectie
Keychron Q7 QMK Aangepaste mechanische toetsenbord ISO-indelingscollectie - Volledig gemonteerd (koolstofzwart) / DE-ISO / Gateron G Pro Bruin is nabesteld en wordt verzonden zodra deze weer op voorraad is.
Kan de beschikbaarheid voor ophalen niet laden
De volledig geassembleerde versie omvat:
- De toetsenbordprintplaat, de behuizing en de stalen plaat.
- OSA-profiel Doorschijnende ABS-achtergrondverlichting (inclusief Mac- en Windows-toetsen).
- Gateron G Pro-schakelaars.
De barebone-versie bevat niet de toetsdoppen en schakelaars.
Voor Q7 kunnen geen kortingscodes worden gebruikt.
Keychron Q7 QMK aangepaste mechanische toetsenbord ISO-indelingscollectie wordt geleverd met de Britse, Duitse, Scandinavische, Zwitserse, Franse en Spaanse lay-out.
Laat uw e-mail achter op "Houd mij op de hoogte wanneer beschikbaar" als het productmodel niet op voorraad is.
Keychron Q7 QMK Aangepaste mechanische toetsenbord ISO-indelingscol...
Keychron Q7
ISO Layout Versions
Keychron Q7 is a 70% layout and all-metal mechanical keyboard. With its all-metal CNC machined body, a full-size layout, double-gasket design, and QMK/VIA support, the Q7 meets all your practical needs. It gives you an endless possibility of customization experience.
Choose the keycaps, switches and more accessories for your Q7 ISO layout keyboard
Q7 ISO Layout Version
The Keychron Q7 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layouts. Each Q7 ISO layout keyboard is also equipped with extra keycaps that fully satisfy your needs.
🇬🇧 UK-ISO Layout
🇩🇪 DE-ISO Layout
🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout
🇫🇷 FR-ISO Layout
🇪🇸 ES-ISO Layout
🇨🇭 Swiss-ISO Layout
With keycaps for macOS installed on Q7 DE-ISO layout.

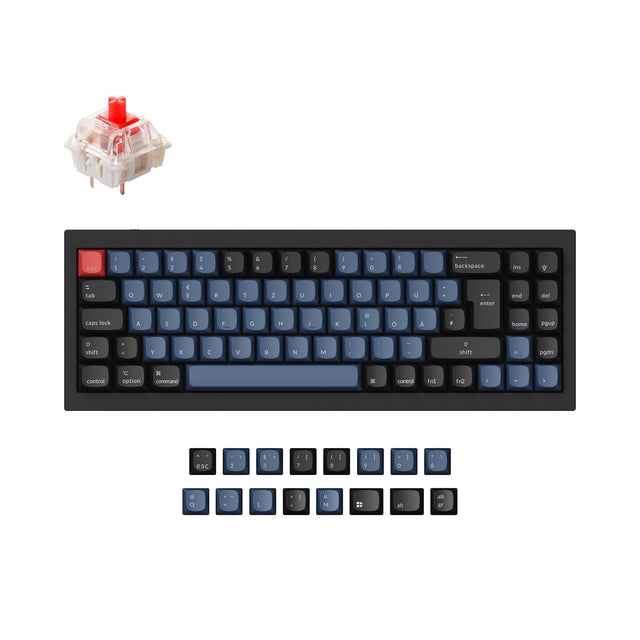

With keycaps for Windows installed on Q7 DE-ISO layout.
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q7.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.
Double-Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
An Epic Core Inside The Keyboard
A brand new ultra-low-power MCU Arm structure that is powerful and armed with 128K Flash to provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.
OSA Profile ABS Backlight Shine-Through Keycaps
To further leverage your typing experience, the Q7 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS backlight shine-through keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q7 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program Q7 with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Note: The Q7's top case has sharper corners to make it much more compatible with third-party keycaps.
Pre-lubed Gateron G Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q7 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q7 also supports third-party stabilizers, including Cherry or Durock.
What's in the box?
Specs
| Width | 121 mm |
|---|---|
| Length | 341.4 mm |
| Front Height | 20.1 mm (without keycaps) |
| Back Height | 33.8 mm (without keycaps) |
| Feet Height | 2.7 mm |
| Angle | 5.2° |
| Weight | 1820 g ± 10g (the fully assembled weight) |
| Body Material | Full CNC machined aluminum |
| Plate | Steel |
| Polling Rate | 1000Hz |
| Layout | DE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO |
| Keycaps (Fully Assembled Version) | OSA Profile ABS backlight shine-through keycaps |
|---|---|
| Switches | Gateron G Pro (fully assembled version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Operating Environment | -10℃ to 50℃ |
Learn more about the Keychron Q7 such as the Q7 shortcuts, assembling the Q7, factory reset, and more in the FAQ section.
