Lemokey L1 QMK Draadloos aangepast mechanisch toetsenbord ISO-indelingscollectie
Lemokey L1 QMK Draadloos aangepast mechanisch toetsenbord ISO-indelingscollectie - Volledig gemonteerde knop Carbon Black / VAN DAT / Gateron Jupiter Rood is nabesteld en wordt verzonden zodra deze weer op voorraad is.
Kan de beschikbaarheid voor ophalen niet laden
- De toetsenbordprintplaat, de behuizing en de pc-plaat.
- Toetsdoppen (inclusief Mac- en Windows-toetsdoppen).
- Schakelaars.

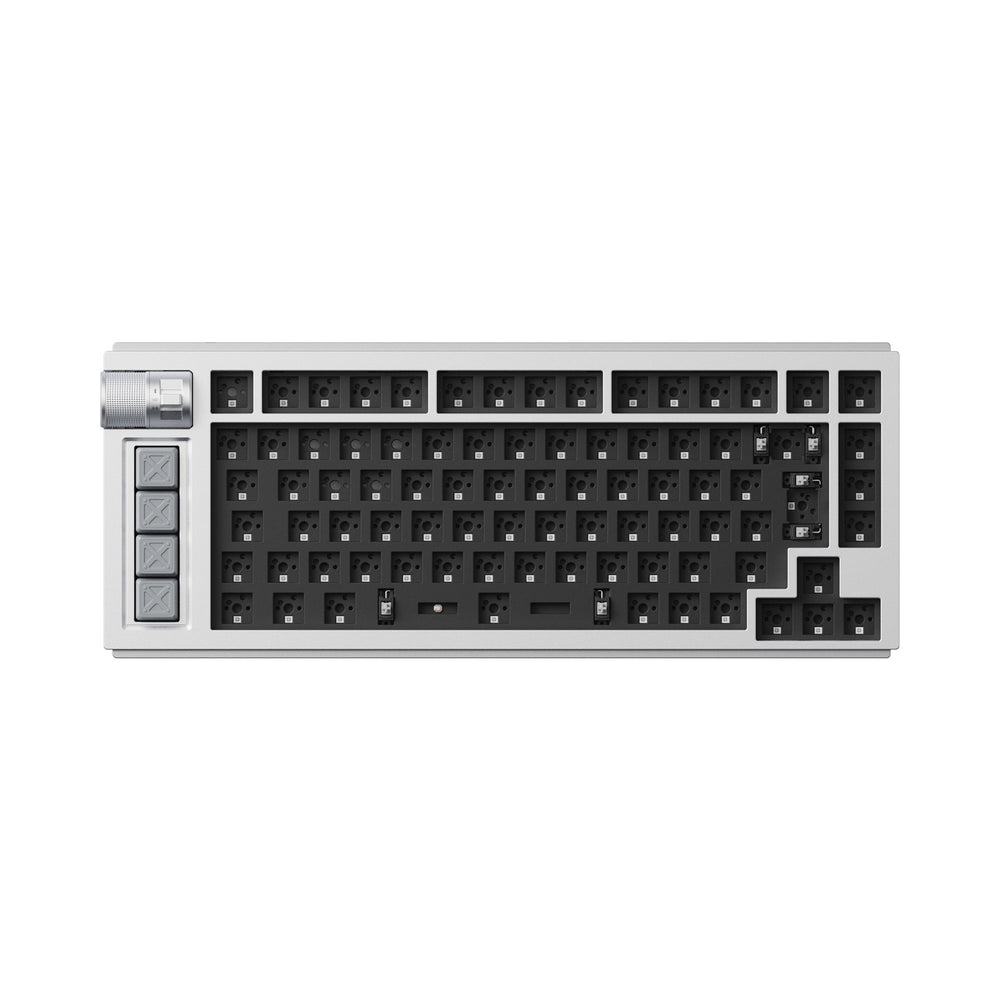

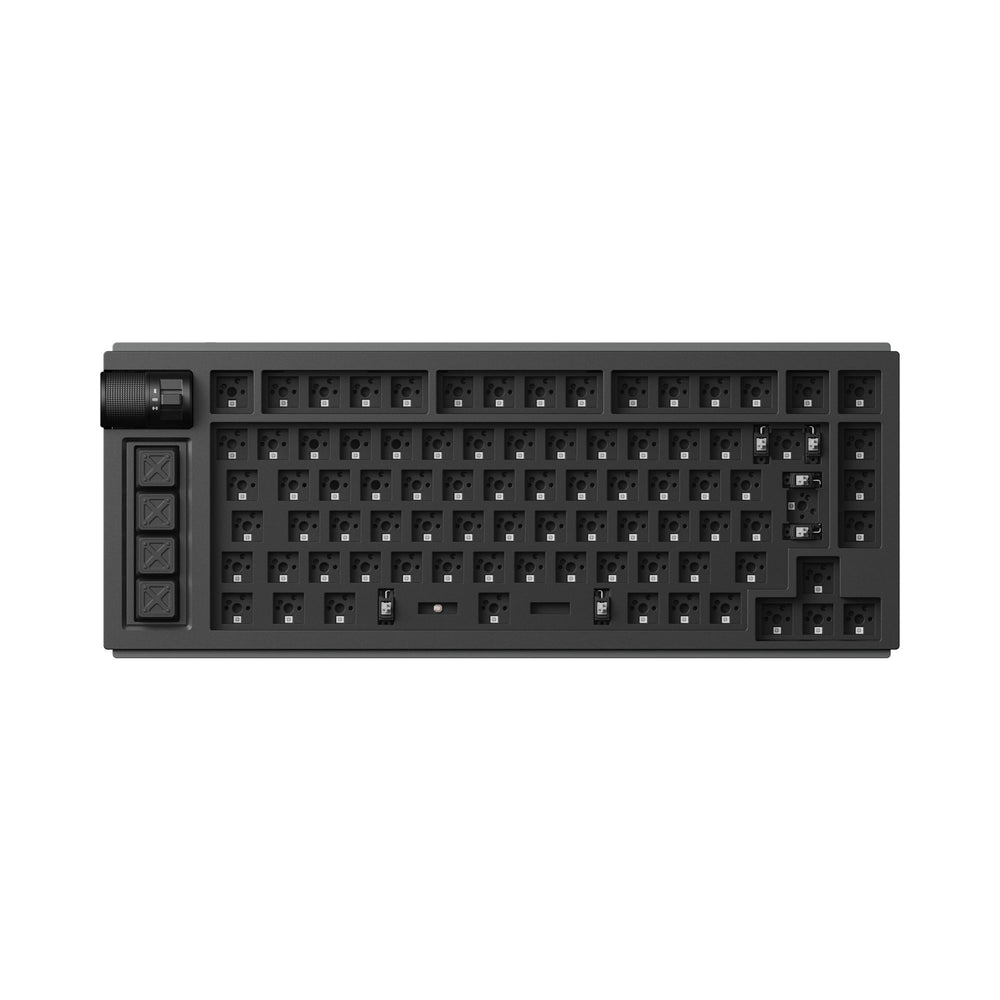

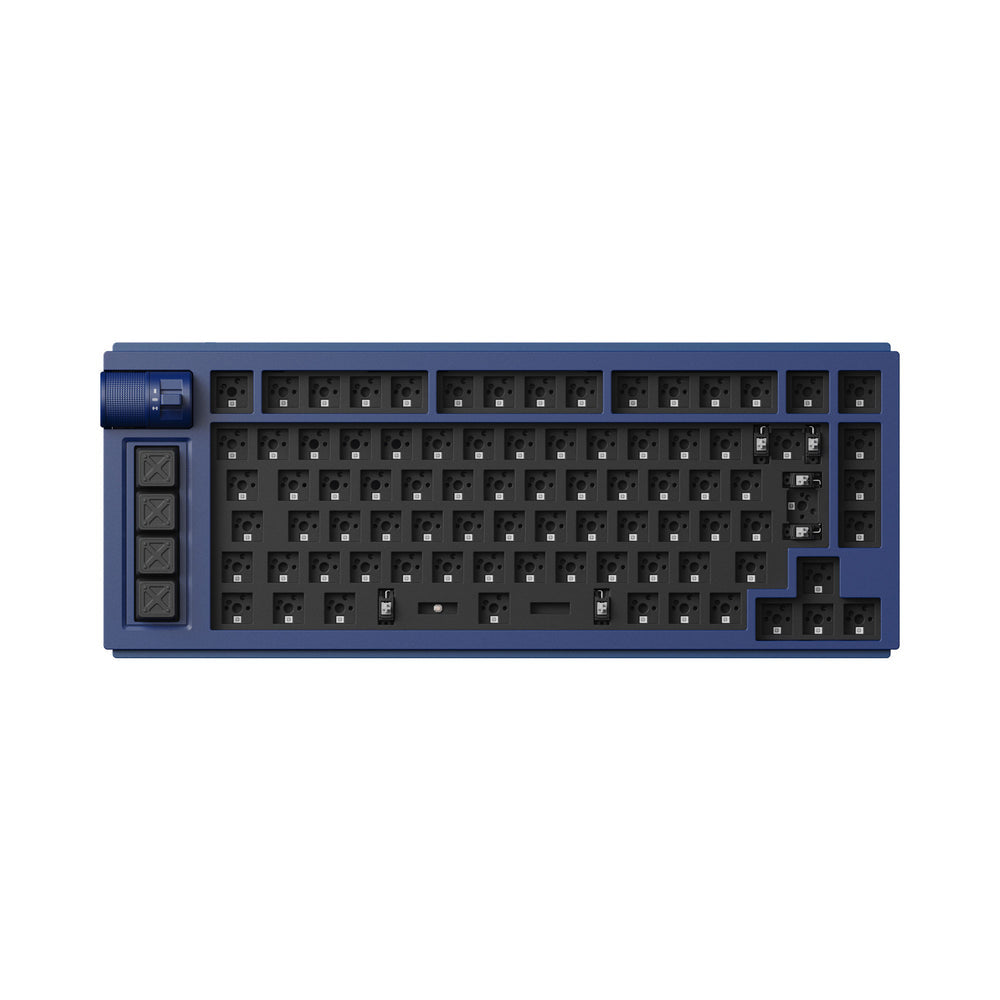

De Barebone-versie bevat geen keycaps en schakelaars.
Er kunnen geen kortingscodes worden gebruikt voor L3 ISO.
Lemokey L1 QMK Draadloos aangepast mechanisch toetsenbord ISO-indel...
LEMOKEY L1
ISO Layout VERSION
Lemokey L1 is a 75% layout QMK/VIA custom wireless mechanical keyboard with a full aluminum body. Designed for the gaming experience, L1 offers a 2.4 GHz wireless connection complemented by full support for Bluetooth and wired modes, and up to 3 devices with freedom switching under Bluetooth mode, taking your gaming experience and productivity to a new level. A creative design of the roller and connection mode toggle also makes it look cooler and more convenient.
The Lemokey L1 as a brand of Keychron can be assembled easily so you can mod each component the way you want. The L1 provides you with the most complete function with a combination of tri-mode connection, OSA PBT keycaps, double-gasket design, hot-swappable PCB, etc. You can easily customize any key or create macro commands through Launcher web app.
L1 ISO Layout Versions
L1 ISO includes the UK, German, Swiss, and Nordic layouts, each equipped with extra keycaps suitable for Windows and Mac devices.
🇩🇪 German DE-ISO Layout

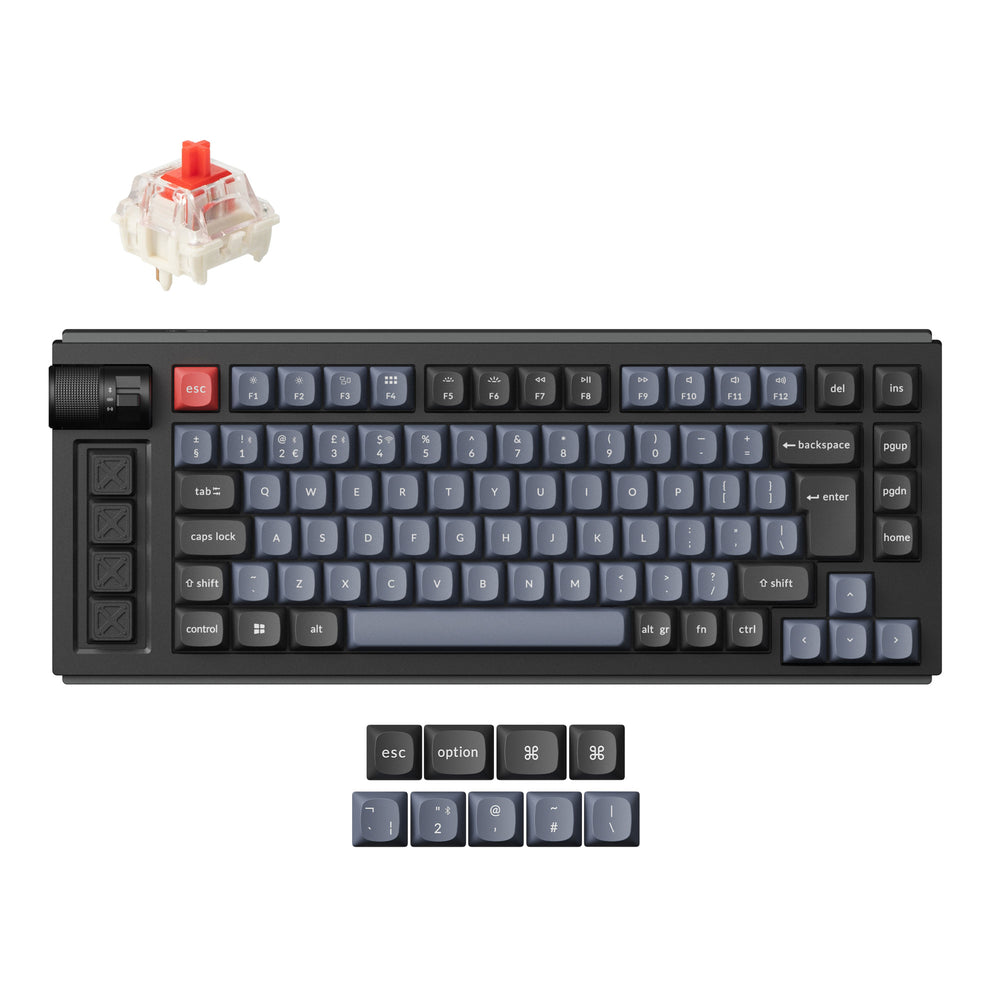

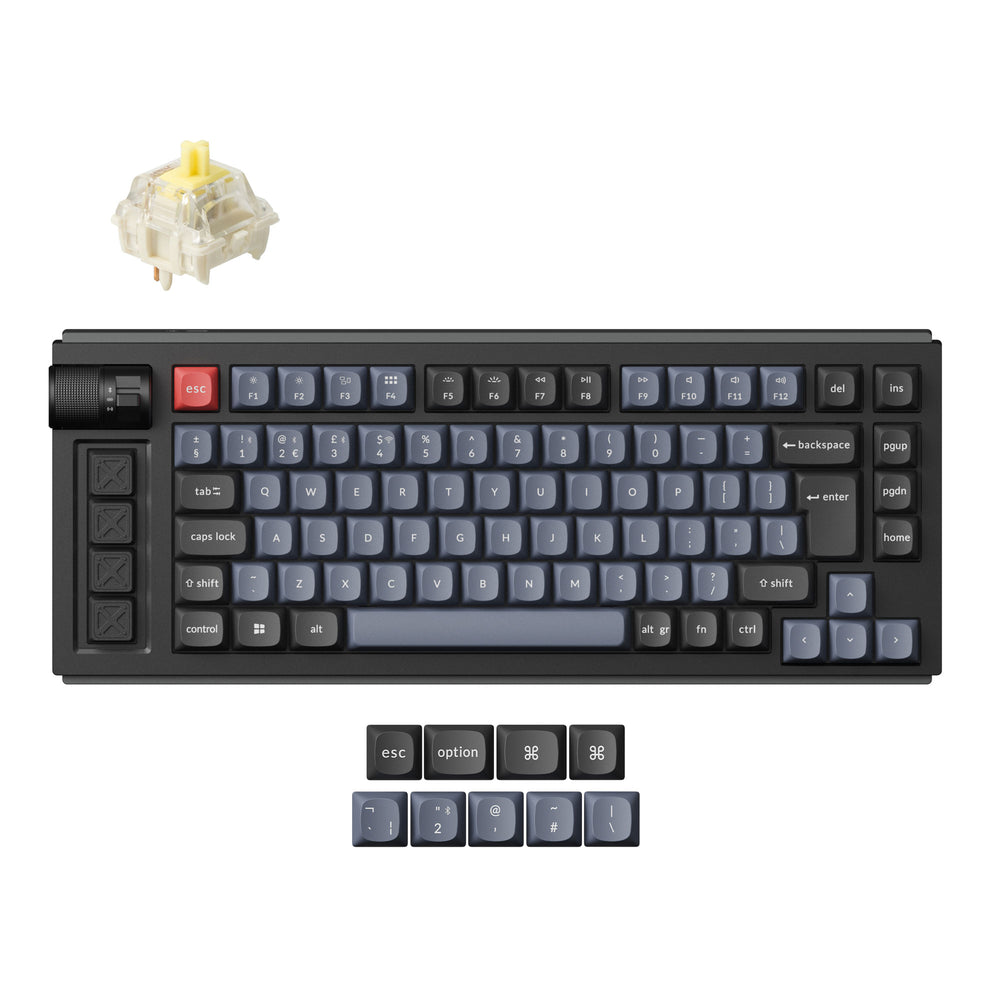

🇬🇧 UK-ISO Layout

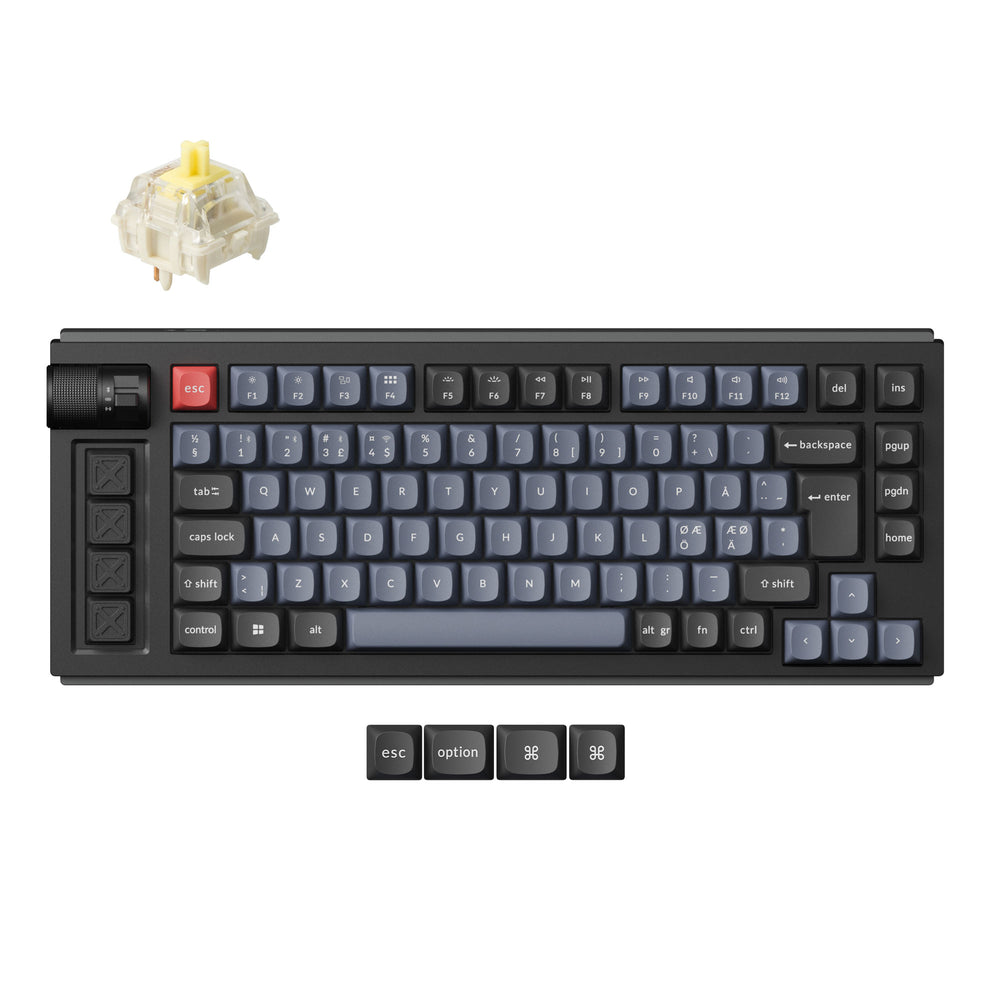

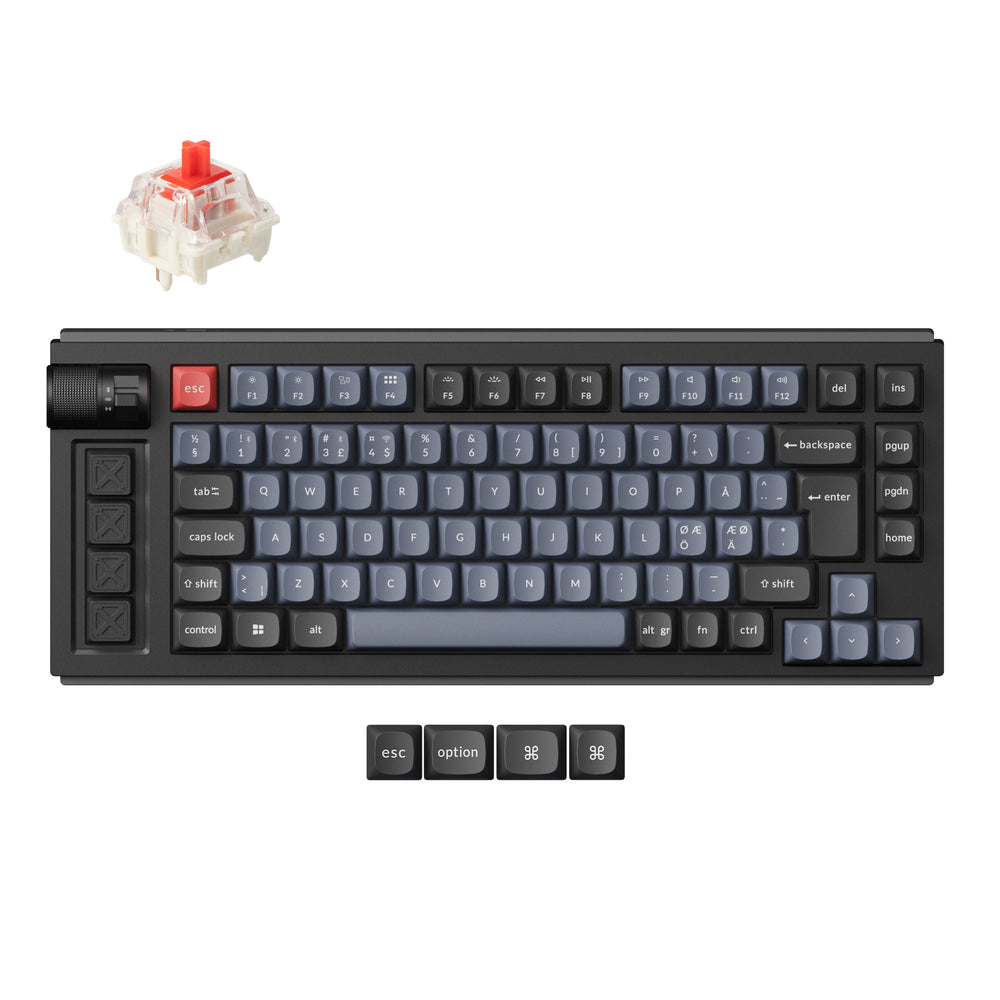

🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout
🇨🇭 Swiss-ISO Layout
Play Wirelessly
2.4 GHZ WITH 1000 HZ POLLING RATE
Get ready for an unparalleled wireless gaming experience with advanced wireless connection technology. L1 is designed with a game-specific 1000 Hz polling rate 2.4G wireless connection. Plus, you can also toggle among 3 different wireless devices through its stable Bluetooth 5.1 for seamless multitasking. Wireless freedom is now a reality and offers increased flexibility for gamers.
Designed For Gamers
ULTRA-LOW LATENCY AND FAST RESPONSE
A brand new powerful ultra-low-power ARM chip (MCU) that is armed with 256K Flash to provide more flexibility for developers. With a super-fast Type-C wired connection (average latency < 1.5 ms), and a pro-grade 2.4G wireless connection with an average latency of less than 2 ms, L1 offers ultra-low latency and a quick response gaming experience that will leave you amazed. This powerful transmission capability also makes gamers no longer limited to the keyboard under the wired mode. L1's wireless experience has been elevated so much that it is even difficult to tell from a wired one.
Refined Desk Art Pieces
FULL ALUMINUM FRAME
Every detail is carefully crafted and optimized, this exquisite metal L1 keyboard features a 6030 aluminum frame and is finally completed through 24 processes including CNC machining, polishing, anodizing, and sandblasting.
Programmable
Creative Roller Design
A programmable roller with a connection modes toggle design in the upper left corner gives the L1 a more mechanical touch. The roller is preset with the volume adjustment feature, or you can also customize it to your desired key or macro commands. It allows you to easily adjust your custom media even in fast-paced competitive gaming.
Double-Shot PBT
OSA PROFILE NON-BACKLIT KEYCAPS
To further leverage your typing experience, the L1 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and non-backlit PBT keycaps that aim to provide a more comfortable fingertip feel, excellent oil resistance, and prevent the legends from fading out.
Double-Gasket
COMFORTABLE TYPING EXPERIENCE
Experience the next level of key sounds and comfort with the Keychron signature double-gasket mount design together with two layers of sound-dampening foam and a flexible PC (Polycarbonate) plate. This design allows the keyboard to get comfortable typing feedback and improves the overall typing sound.
Program with QMK & Launcher.
Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the Keychron Launcher Web App.
* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
For More Keycap Profile
SOUTH-FACING RGB
Comes with a preset 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even customize your lighting by remapping these keys with Launcher web app. The south-facing RGB illuminates the backlight better from the typist's perspective when the non-shine-through PBT keycaps are installed.
Hot-Swappable
CUSTOMIZE YOUR SWITCH ANYTIME
Every detail matters for a personalized typing experience, that’s why we give you the power. With the hot-swappable feature, you can hot-swap every switch on the L1 with almost all of the 3-pin or 5-pin MX-style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. Simply using the included puller, you can change switches to customize your own typing experience in seconds.
For Mac and Even More
EXTRA COMPLIMENTARY KEYCAPS
For every L3 Fully Assembled version, we will give away 11 complimentary extra keycaps. We want to offer you the ability to customize your L3 even more.
For Carbon Black Frame
For Space Silver Frame
For Navy Blue Frame
Exclusive Gateron Jupiter Switch
PRE-LUBED AND SMOOTH
Our exclusive Gateron Jupiter mechanical switch (for the Fully-assembled version only) comes with a 3-pin design, plus pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan delivering a smoother typing experience. Their unique LED diffuser design offers high RGB backlight transmittance and a softer backlight effect.
Screw-In Stabilizers
SMOOTH AND STABLE
The built-in PCB-mounted screw-in stabilizer creates a smooth typing experience and reduces the wobbliness of big keys such as the space bar, shift, enter, and delete keys. You can even customize it with your favorite third-party stabilizers with ease.
What's in the box?
Frequently bought together (Add-on)
Select the matching variant for your product.
Specs
| Dimension | 369 x 146 mm (14.5 x 5.75 inches) |
|---|---|
| Number of Keys | 86 (75% layout) |
| Layout | ISO (EU) |
| Back Height without keycaps | 33.04 mm (1.30 inches)
|
| Front Height without keycaps | 21.03 mm (0.83 inches)
|
| Weight | About 1887 g (Fully Assembled version)
|
| Switch | Gateron Jupiter (Fully Assembled version)
|
| Frame Material | Full CNC machined aluminum |
| Plate Material | PC |
| Keycap | Cherry double-shot PBT keycaps (Non-backlight shine through) (OEM height, SA shape) |
| Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. |
| Stabilizer | Screw-in PCB stabilizer |
| Cable Length | 1.8 m |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
|---|---|
| Charging Time | Around 5 hours |
| Charging Port | USB type-C |
| Connectivity | 2.4 GHz/Bluetooth / Type-C wired |
| Switch Face | South-facing RGB |
| Backlight | 22 types of RGB backlight options plus endless possibilities |
| Polling Rate | 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode) |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Compatible System | Windows/macOS/Linux |
| Bluetooth Version | 5.1 |
| Bluetooth Device Name | Lemokey L1 |
| Battery | 4000 mAh Rechargeable li-polymer battery |
| BT Working Time (Backlit off) | Up to 200 hours (Lab test result may vary by actual use) |
| BT Working Time (RGB) | Up to 100 hours (Lowest brightness) |
Learn more about the Lemokey L1 such as the shortcuts, assembling guide, factory reset, and more in the FAQ section.
