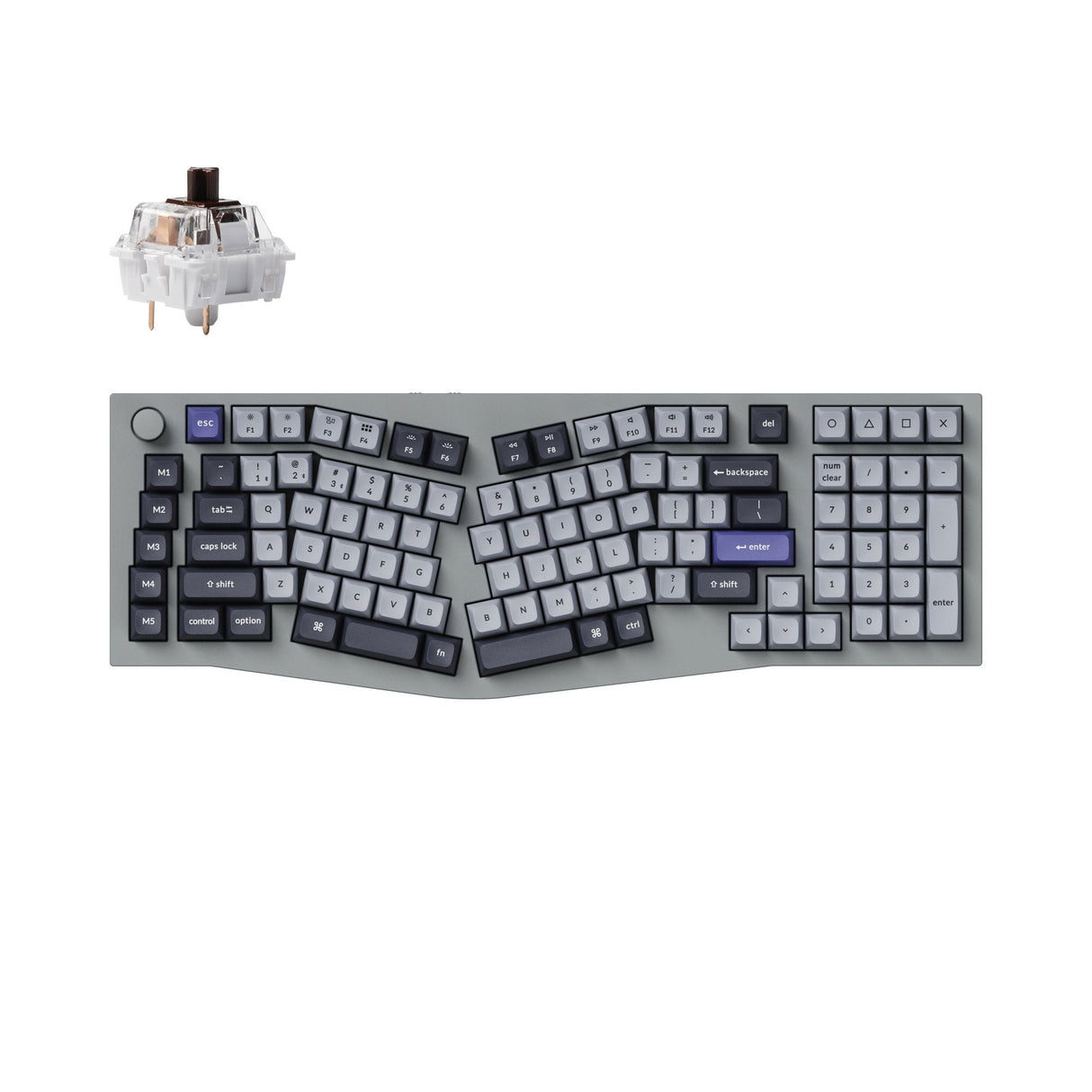

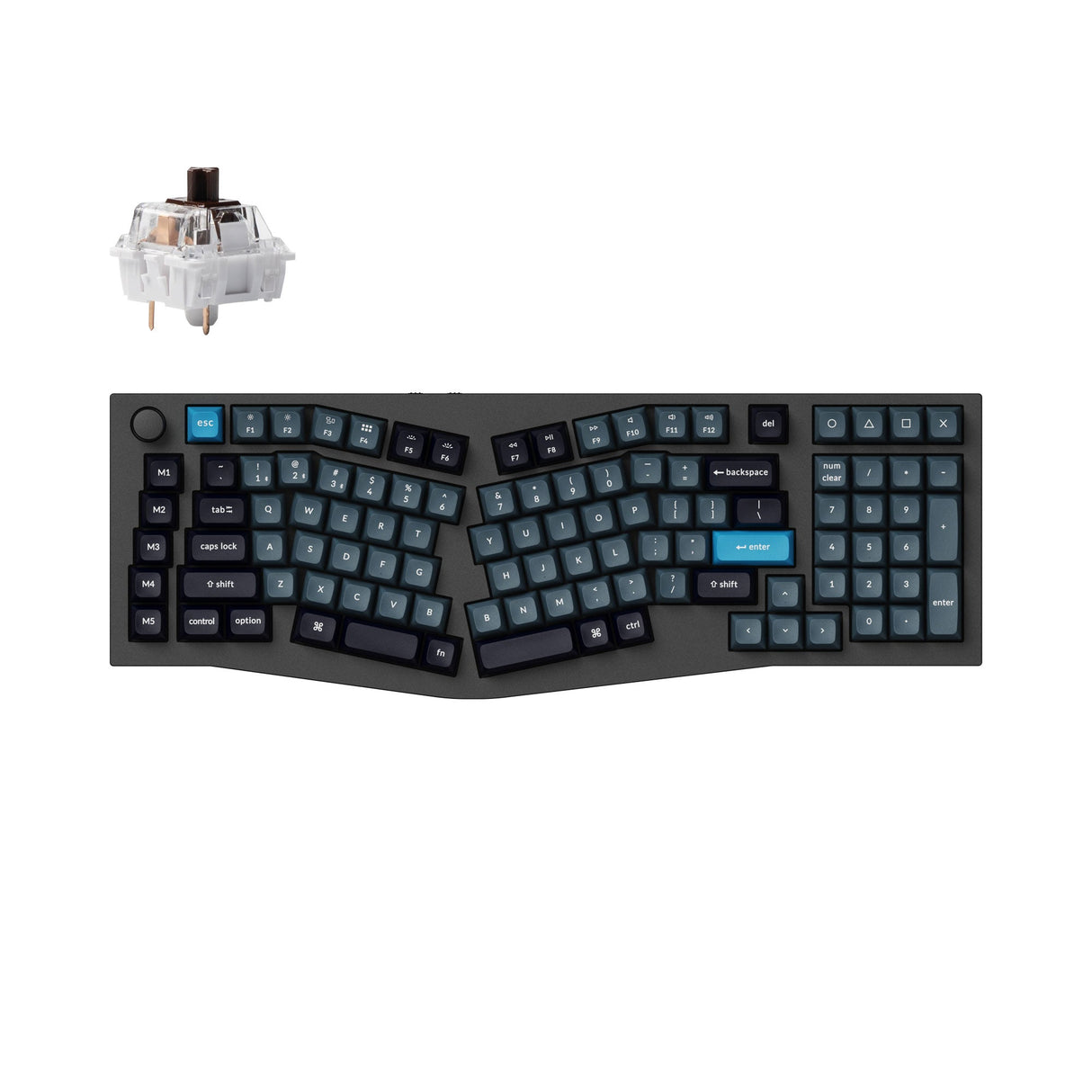

Keychron Q13 Pro (Alice Layout) QMK/VIA draadloos aangepast mechanisch toetsenbord (US ANSI-toetsenbord)
Keychron Q13 Pro (Alice Layout) QMK/VIA draadloos aangepast mechanisch toetsenbord (US ANSI-toetsenbord) - Barebone-knop / Zilver grijs / Barebone is nabesteld en wordt verzonden zodra deze weer op voorraad is.
Kan de beschikbaarheid voor ophalen niet laden
- De toetsenbordprintplaat, de behuizing en de pc-plaat.
- Keycaps (inclusief Mac- en Windows-keycaps).
- Schakelaars.

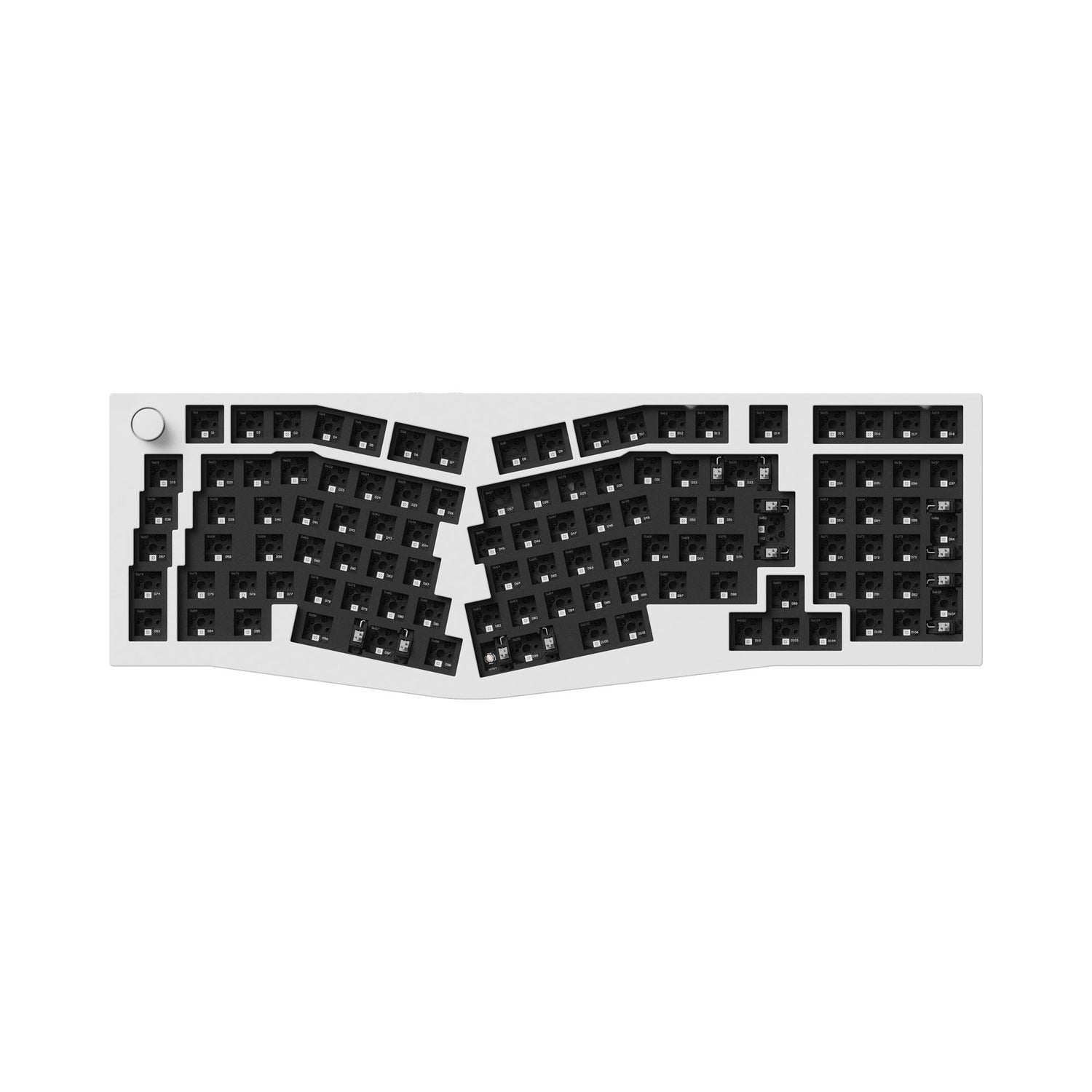

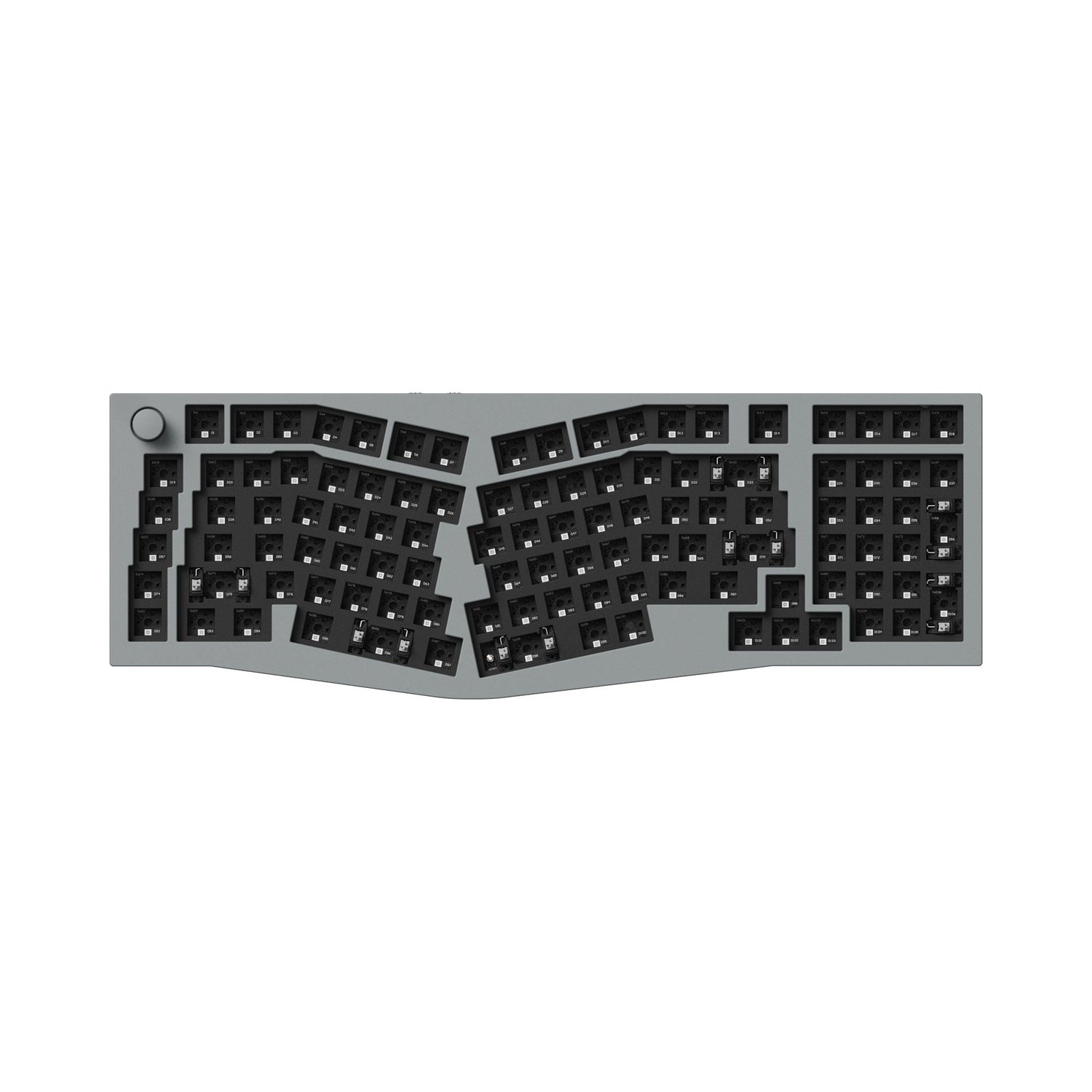

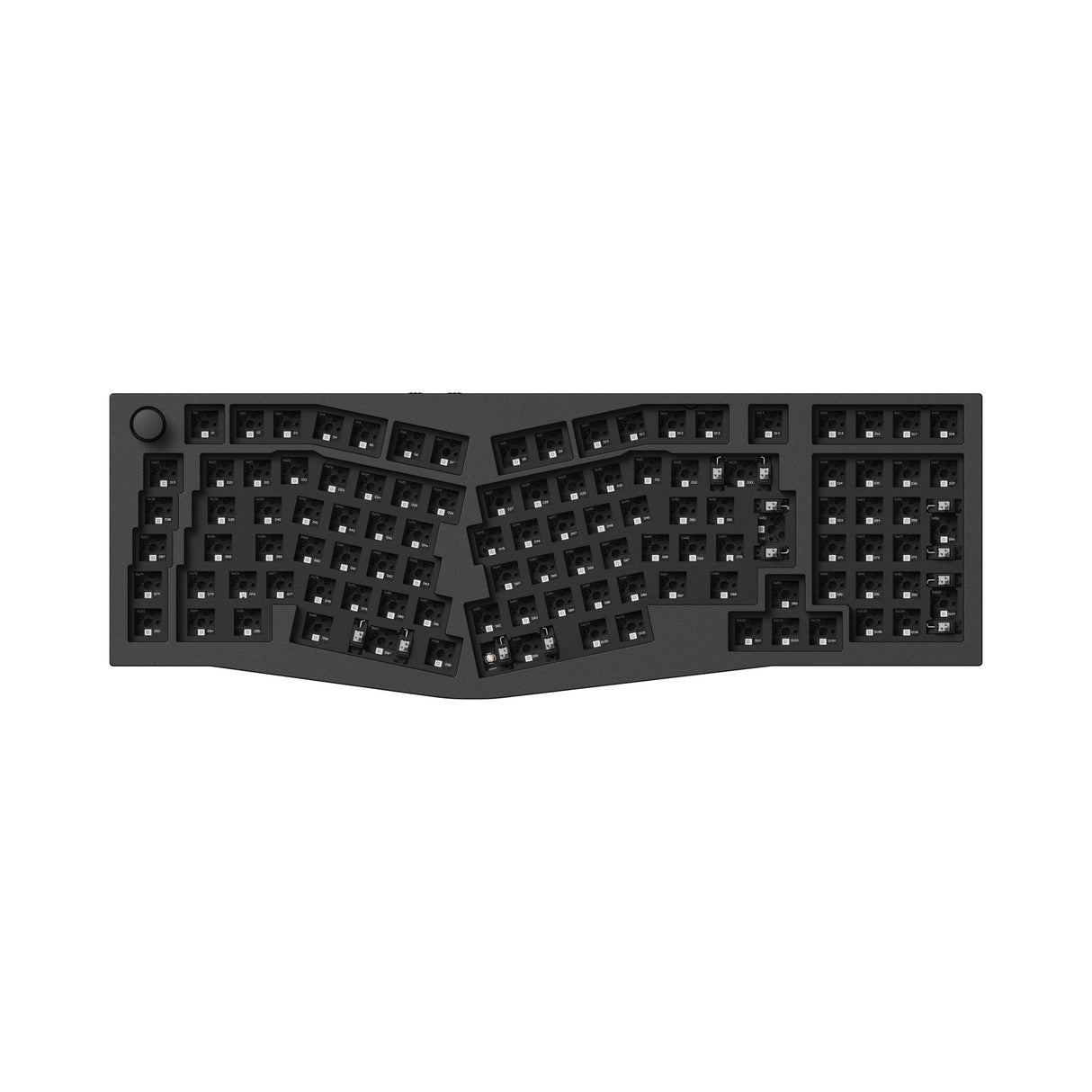

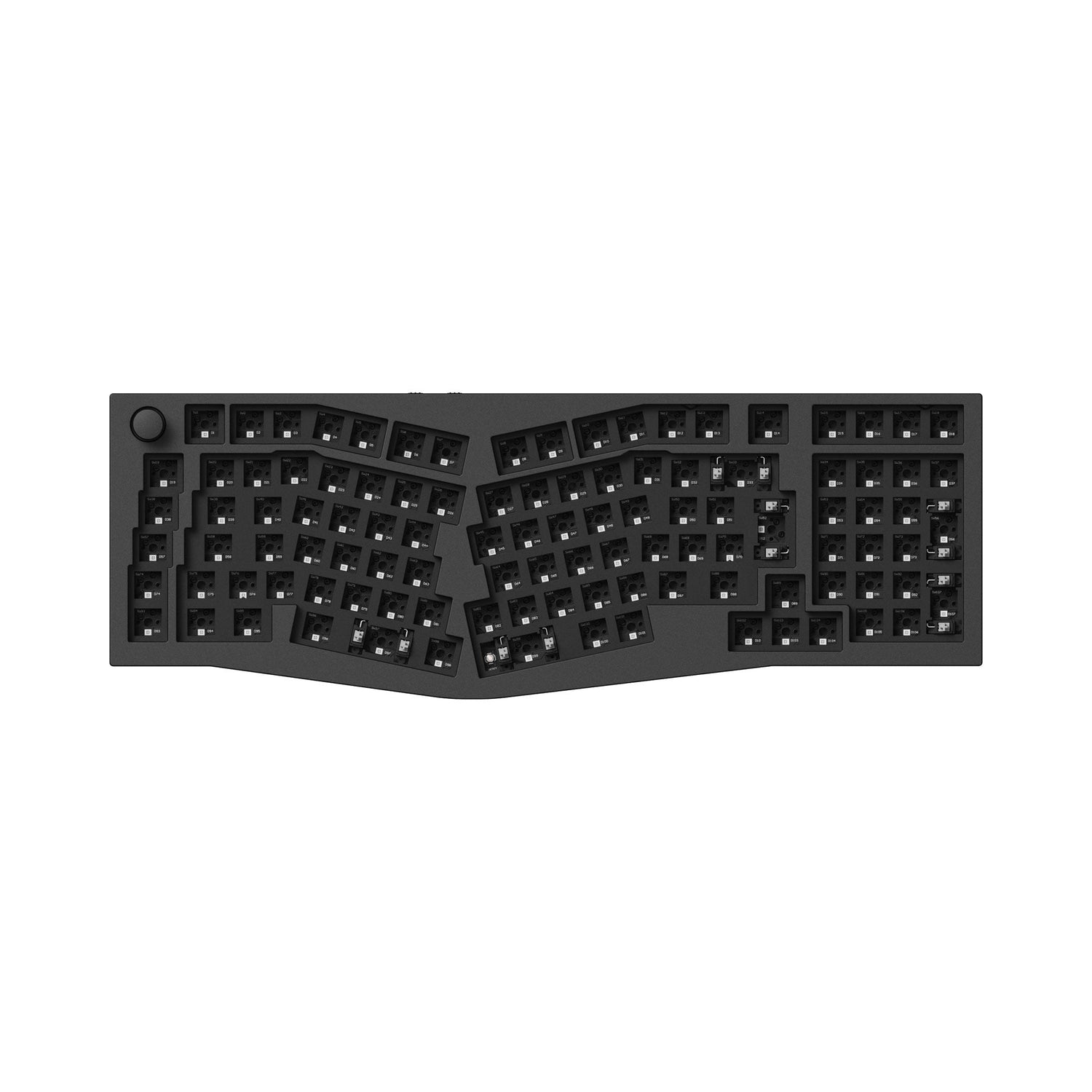

De Barebone-versie bevat geen keycaps en schakelaars.
Er kunnen geen kortingscodes worden gebruikt voor Q13 Pro.
Keychron Q13 Pro (Alice Layout) QMK/VIA draadloos aangepast mechani...
Keychron Q13 Pro
Meet the Keychron Q13 Pro, the full-metal QMK/VIA wireless custom mechanical keyboard with a 96% Alice layout, along with many premium designs, including double-gasket design, PBT keycaps, screw-in stabs, etc., it will deliver you an unprecedentedly ergonomic typing experience!
Choose the keycaps, switches and more accessories for your Q13 Pro
Wireless and Wired
An excellent solution for multitasking. You can connect the Q13 Pro with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.1 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows. A reliable USB Type-C wired connection is also available when you need it.
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q13 Pro.
Easy Assemble
We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.
Double-Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.
Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate. This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM Cortex-M4 32-bit STM32L432 chip (MCU) equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on type-c wired mode (90 Hz on wireless mode), which makes the latency hardly noticeable even in competitive games.
KSA Double-Shot PBT Keycaps
To further fine-tune your typing experience, we designed our unique Keychron spherical-angle (KSA profile) double-shot keycap set with premium non-backlight shine through PBT material, that is oil-resistant and durable for long-term use.
Suitable for All Devices
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q13 Pro comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Hot-swappable.
Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the Q13 Pro with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.
South-facing RGB LED Lights.
Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.
Keychron K Pro Mechanical Switch

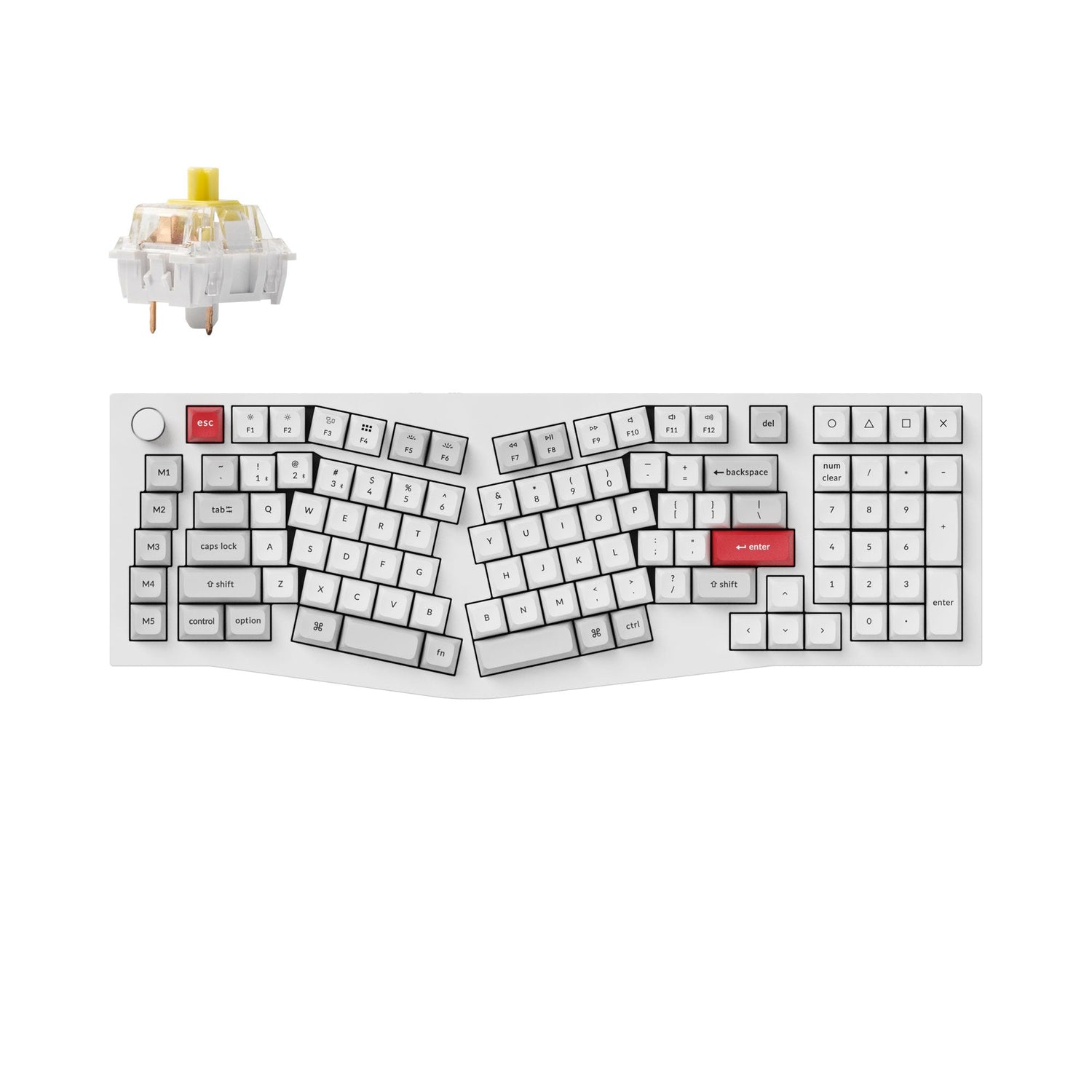

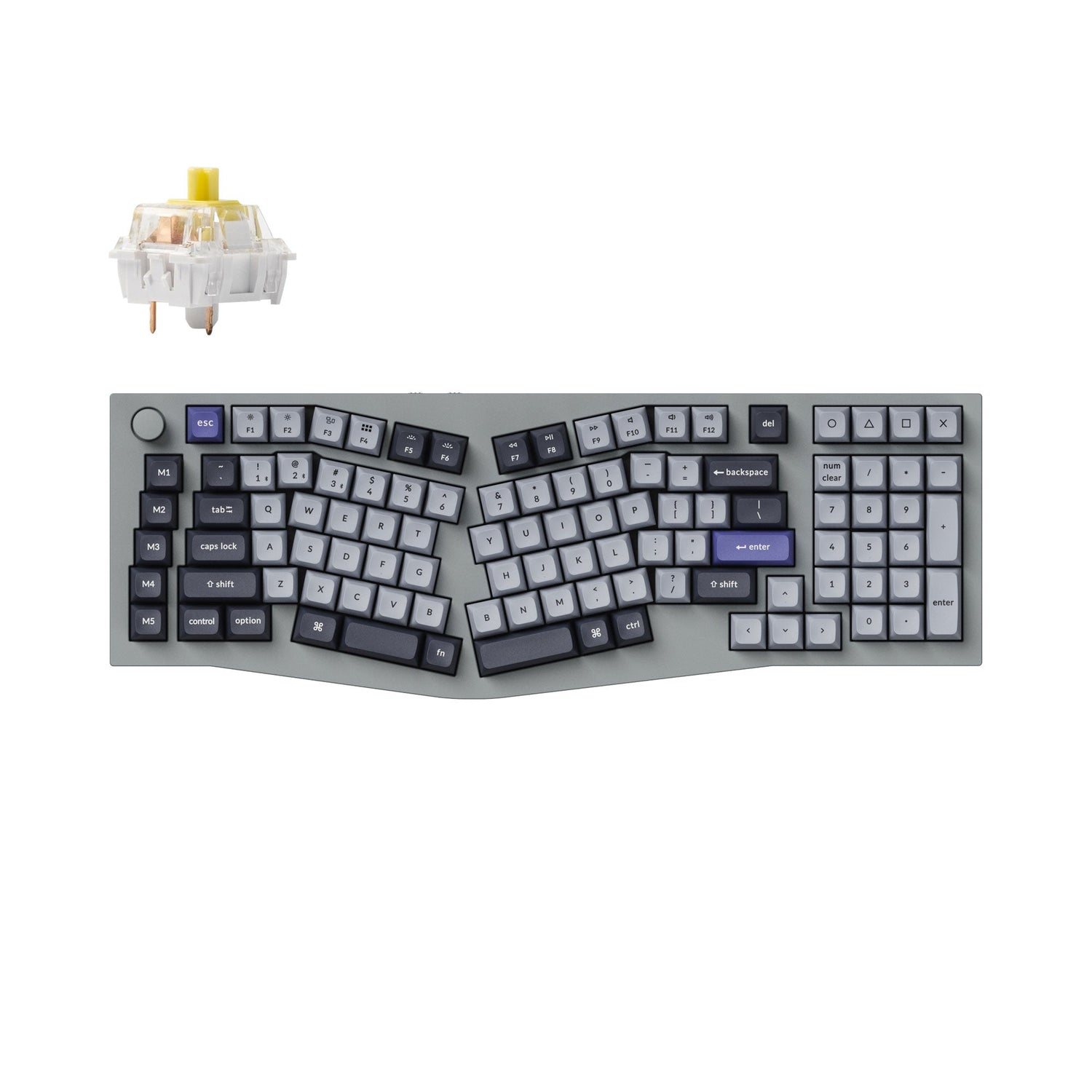

By optimizing the switch mold, the Q13 Pro switch wobbles less than the standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed K Pro switches will ensure the best fingertip smoothness. Not to mention the banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.
PCB Stabilizers
No detail is too insignificant when it comes to your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as the space bar, shift, enter, and delete keys. You can even customize your favorite stabilizers on your own.
Looking for ISO Layout?
The Q3 Pro ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇳🇴🇸🇪Nordic, 🇨ðŸ‡Swiss, 🇫🇷French, and 🇪🇸 Spanish layout, and the “Barebone ISO Knob" option is suitable for all ISO countries (e.g.: 🇮🇹Italy, 🇵🇹Portuguese, ðŸ‡ðŸ‡ºHungary, etc.) to build their keyboard with keycaps in their preferred languages and switches.
What's in the box?
Specs
| Width | 156.85 mm |
|---|---|
| Length | 447.29 mm |
| Front Height | 20.30 mm (without keycaps) |
| Back Height | 31.82 mm (without keycaps) |
| Height incl. keycap (front) | 29.96 mm |
| Height incl. keycap (rear) | 44.72 mm |
| Feet Height | 2Â mm |
| Angle | 5° |
| Weight | 2392 ± 10 g (Fully Assembled version) |
| Body Material | Full CNC machined aluminum |
| Plate Material | PC |
| Keycap | KSA double-shot PBT keycaps, not shine-through (Fully Assembled version) |
| Switch | Keychron K Pro (Fully Assembled version) |
|---|---|
| Stabilizer | Screw-in PCB stabilizer |
| Backlight | South-facing RGB LED |
| Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. |
| MCU | Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Polling Rate | 1000 Hz (wired) / 90 Hz (wireless) |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Operating Environment | -10 to 50℃ |
| Battery | 4000 mAh Rechargeable li-polymer battery |
|---|---|
| BT Working Time (Backlit off) | Up to 300 hours (Lab test result may vary by actual use) |
| BT Working Time (RGB) | Up to 100 hours (Lowest brightness) |
| Bluetooth Version | 5.1 |
| Compatible System | macOS/Windows/Linux |
| Connectivity | Bluetooth / Type-C wired |
| Bluetooth Device Name | Keychron Q13Â Pro |
Learn more about the Keychron Q13 Pro such as the shortcuts, assembling guide, factory reset, and more in the FAQ section.
