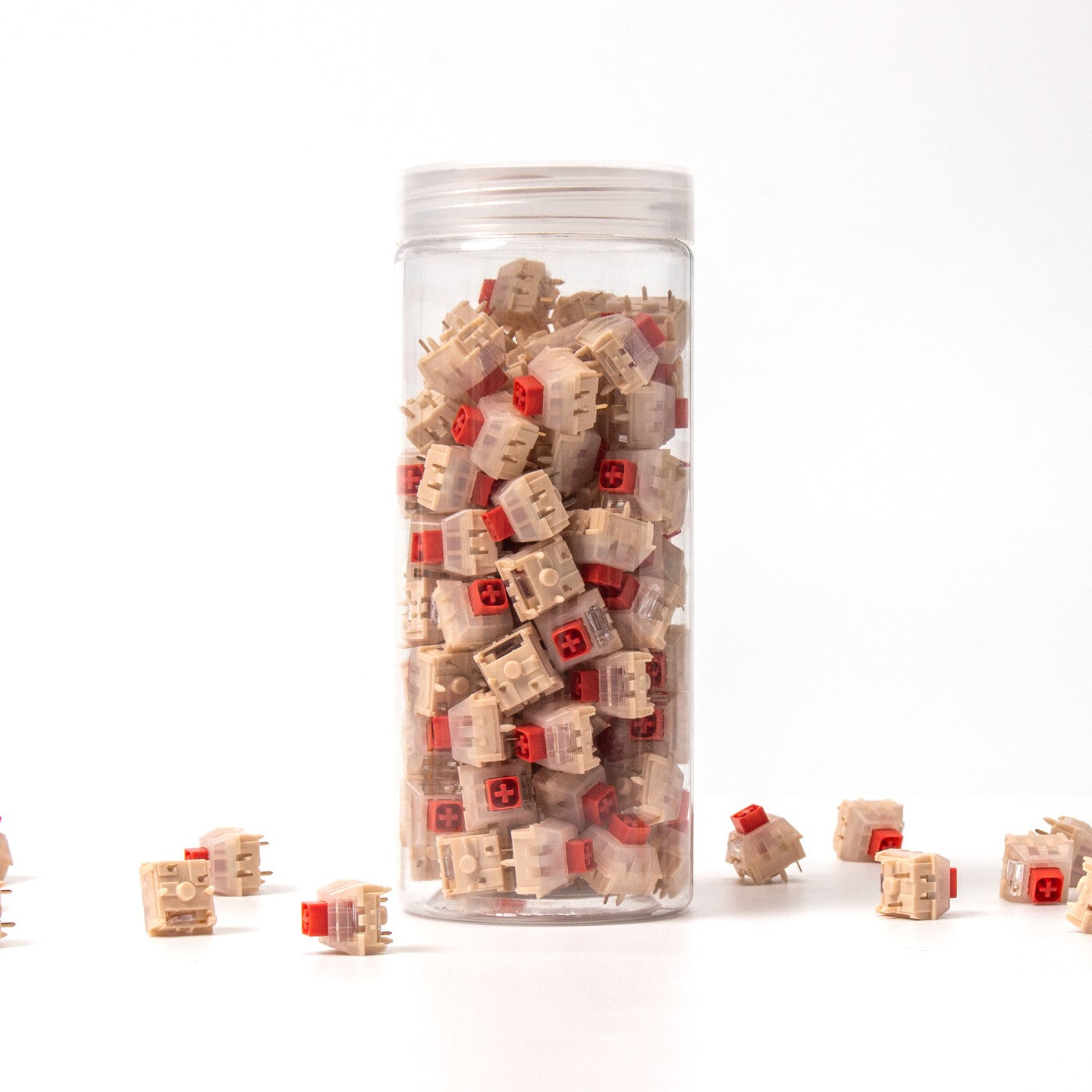

The Kailh Red Bean Pudding Switch is a box switch with a comfortable linear typing feeling. This switch is built with a red stem with a translucent cover and POM material base. Its whole appearance looks like a pudding, but with a touch of feeling of red bean, and is very fresh.
POM Material Stem And Base
The Red Bean switch is equipped with a stem and base made of self-lubricating POM material and delivers a smooth feeling.
Short Spring. Stronger Rebound
The Jellyfish Switches come in linear and clicky options to meet the need of beginners and switch enthusiasts.
90% Light Transmittance
The switch has a light guide post within the switch housing to let more RGB light shine through and it is said that it can be reach 90% light transmittance.
Dustproof & Waterproof "Box" Design
Its box design has dustproof and waterproof features, increasing the switch’s lifespan and longevity.
Product Structure
Feature And Specs
Type
Linear
Operation Force
45±10 gf
Pre-travel
1.8±0.4 mm
Return Force
≥35 gf
Total Travel
3.6±0.3 mm
Sound Level
Low
Operation Life
Up to 80M cycles
Suitable For
Gaming/office
Product Name
Red Bean Pudding Switch
Stem
POM
Top Housing
PC
Bottom Housing
POM
Contact
Composite gold
Spring
Spring steel
Protecting Cover
Nylon
Slider
POM
Light Guide Post
PC
Pins
5-Pin
Factory Pre-lubed
No
SMD LED Support
Yes
Compatible Keyboards
Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V and V Max series, Q, Q Pro and Q Max series Keychron keyboards, and L and P Series Lemokey keyboards.
